Installing Loudspeaker Trim Panel (Logo)

> 7090IN LOUDSPEAKER TRIM PANEL (TEMPLATE)

1. 1.1  Print template.
2. 1.2  Check size of template.
3. 1.3  Cut out template.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loudspeaker trim panel (logo)

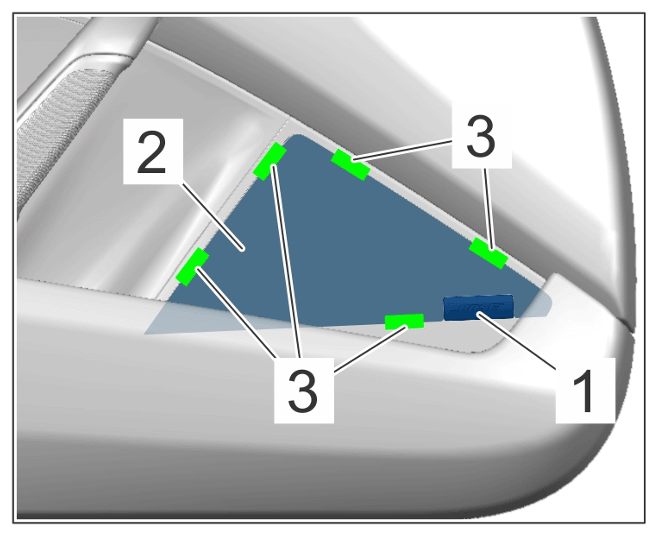

1. 2.1  Align template -2-  with loudspeaker trim panel.
2. 2.2  Fix template in place. -3-
3. 2.3  Pull off protective film, align loudspeaker trim panel (logo) -1-  with the template and press it on.
