Removing Trim Panel For (Centre) Loudspeaker

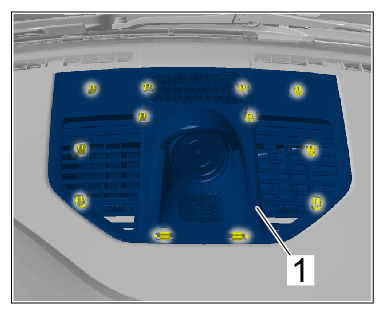

  1. Unclip trim panel for (center) loudspeaker -1-  and remove it until the electric plug connection is accessible.
    G15534401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for (center) loudspeaker

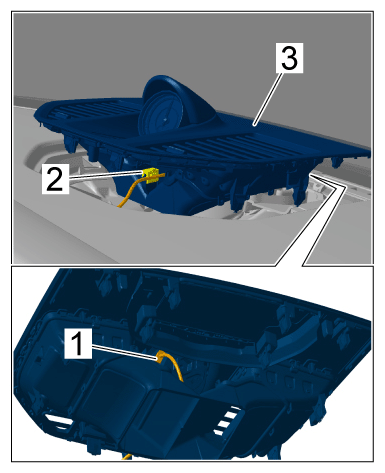

  2. Remove trim panel for (center) loudspeaker -3-  .
    1. 2.1  Release and unplug electric plug connection -1-  .
    2. 2.2  Unclip line bracket -2-  with section of line for stopwatch.
    3. 2.3  Remove trim panel for (center) loudspeaker -3-  .
    G15534402Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection
