Removing Slide/Tilt Sunroof Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

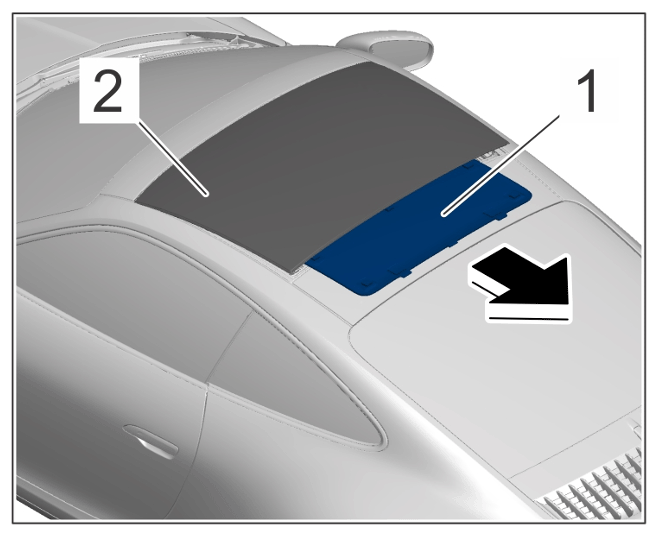

Installation position

1. Open slide/tilt sunroof by approx. > Length 5 cm  carefully.
2. Loosen slide/tilt sunroof trim -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

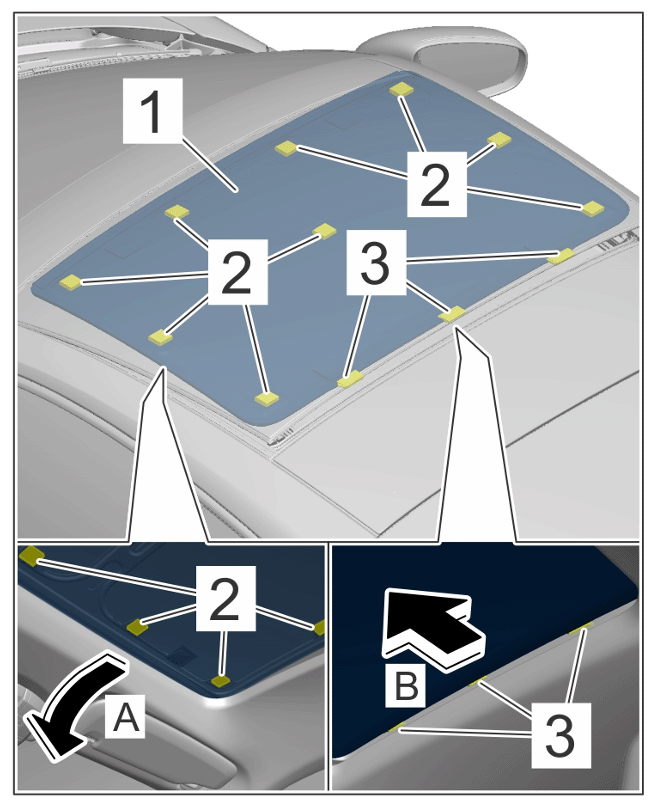

   Slide/tilt sunroof trim mounting

   1. 2.1  Starting at the front, detach slide/tilt sunroof trim -1-  at the Velcro fasteners -2-  . -arrow A-
   2. 2.2  Remove guides -3-  for slide/tilt sunroof trim -1-  at the rear, -arrow B-
3. Remove slide/tilt sunroof trim -1-  between the slide/tilt sunroof -2-  and body, -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

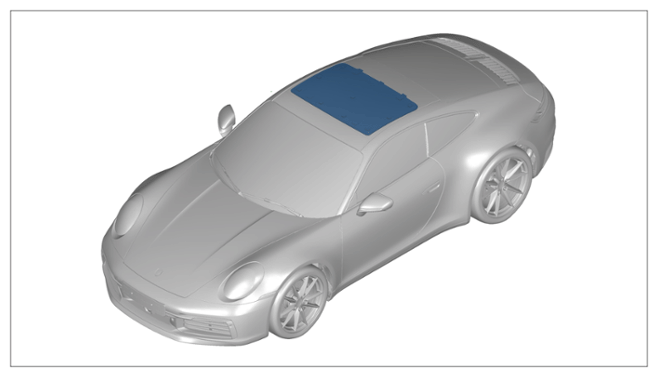

   Slide/tilt sunroof trim
