Removing Rear Roof Trim Panel

  1. Fold front seat and rear backrest forward.
  2. Unclip rear roof trim panel -1-  from below -arrow A-  (-2-  ) and remove it by pulling it forward -arrow B-  .

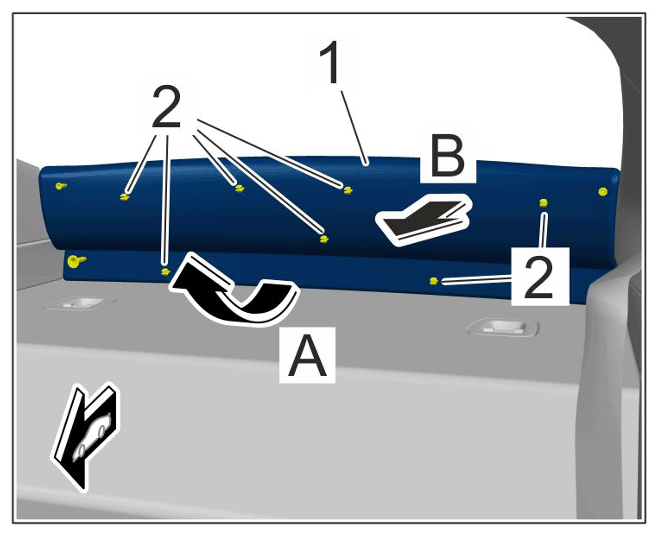

    G15534396Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear roof trim panel
