Removing Roof Trim Panel

Information

To reduce the forces during removal and thereby the risk of damage, the removal steps must be carried out at the accessible connection points using a suitable tool.

Information

Some of the steps are shown only on one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

1. For vehicles with a sliding roof:  Open sliding roof fully.
2. Move driver's and passenger's seat backrest back as far as it will go.
3. Pull off rubber seal for front door in the work area.

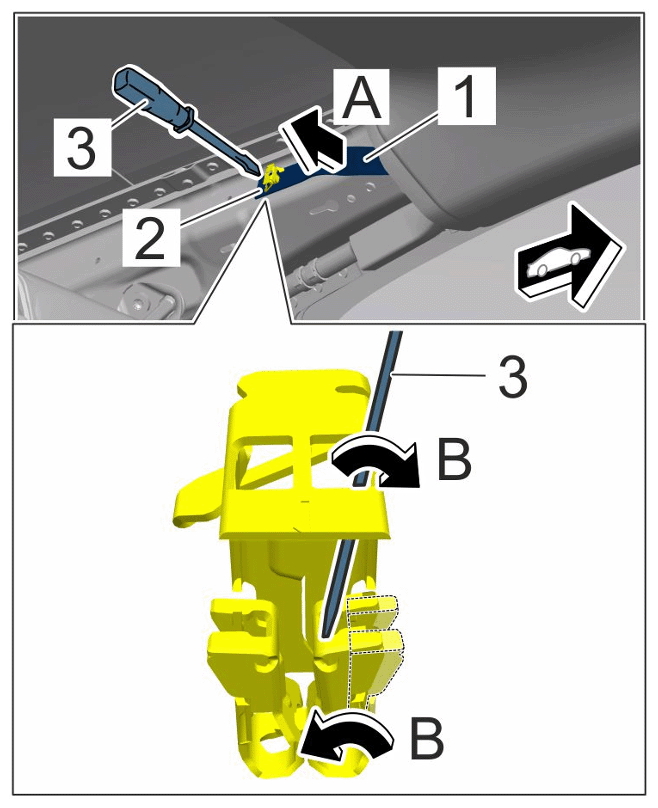

4. Unclip rebound strap for headliner -1-  at the rear -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rebound strap

   1. 4.1  Release front retaining lug on the clip using a small screwdriver -3-  by pushing it inward -arrows B-  and lift up rebound strap -1-  at the same time -arrow A-  .
   2. 4.2  Release rear retaining lug in the same way and detach rebound strap with clip.

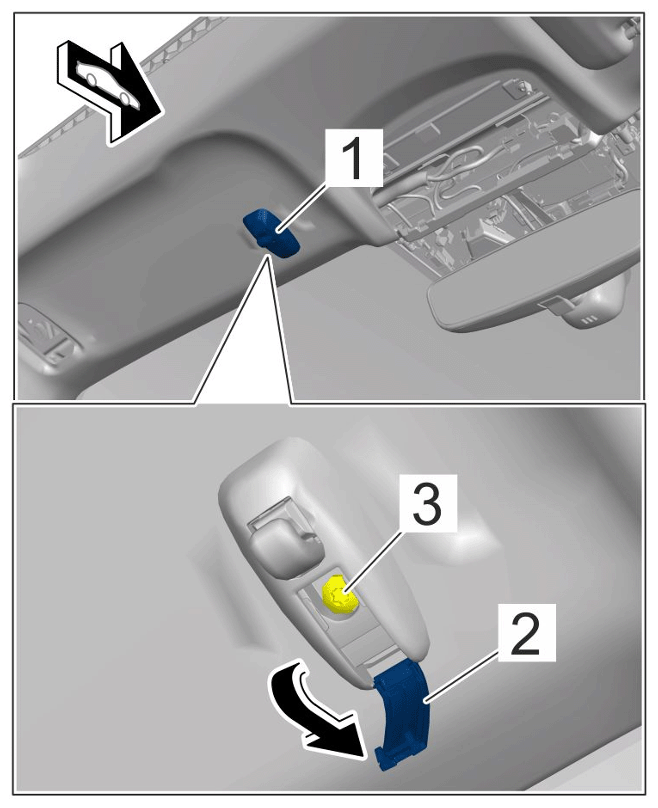

5. Remove sun visor holder -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sun visor holder

   1. 5.1  Open the cover -2-  (-arrow-  ).
   2. 5.2  Unscrew screw -3-  under the cover -2-  and remove sun visor holder -1-  .

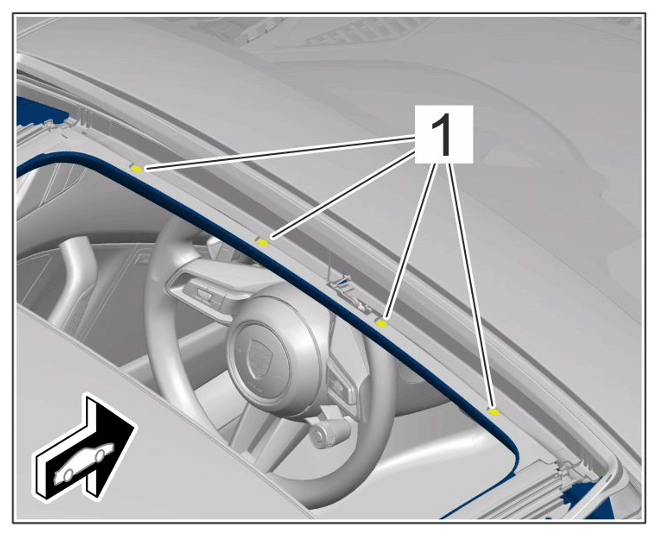

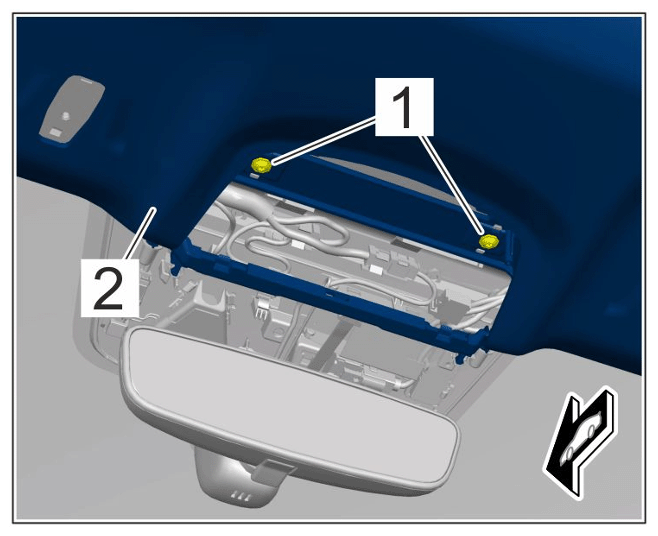

6. Unscrew screws -1-  from the headliner -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front screws

7. Only for vehicles with sliding roof:  Unscrew screws in the sliding roof area.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws for sliding roof

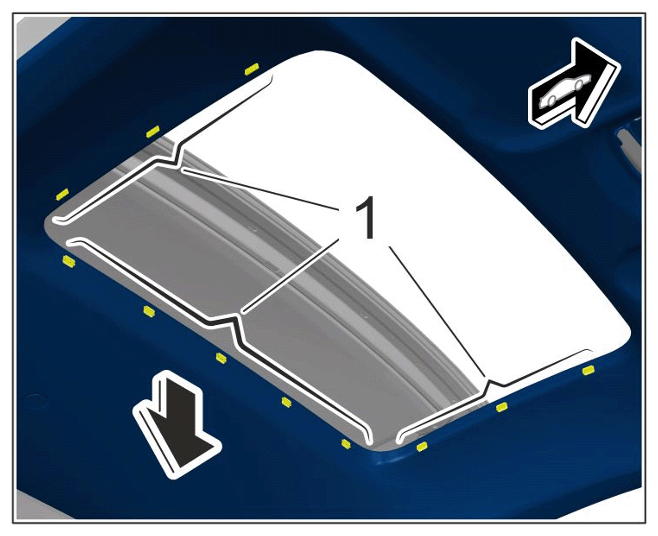

8. Only for vehicles with a sliding roof:  Unclip headliner in the covering frame area by pulling it downwards -arrow-  (-1-).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clips on sliding roof

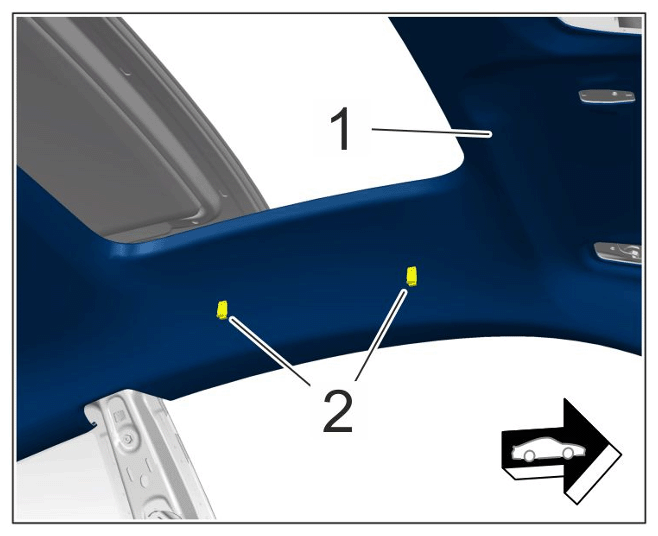

9. Unclip headliner -1-  at the sides from front to rear -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear roof trim panel

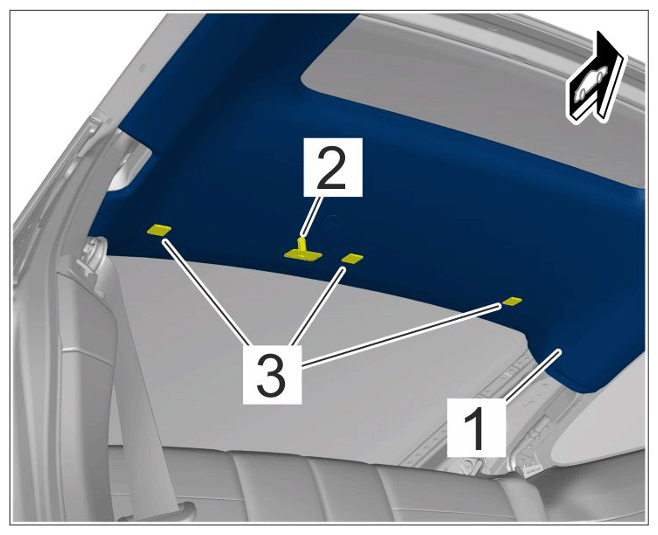

10. Unclip roof trim panel -1-  in the rear area -2-  and loosen Velcro fasteners -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Roof trim panel at the sides

    Information

    The help of another person is required. One person at the driver's door and the other person at the passenger's door.

    Information

    Make sure that the roof cover does not buckle.

11. Remove headliner.

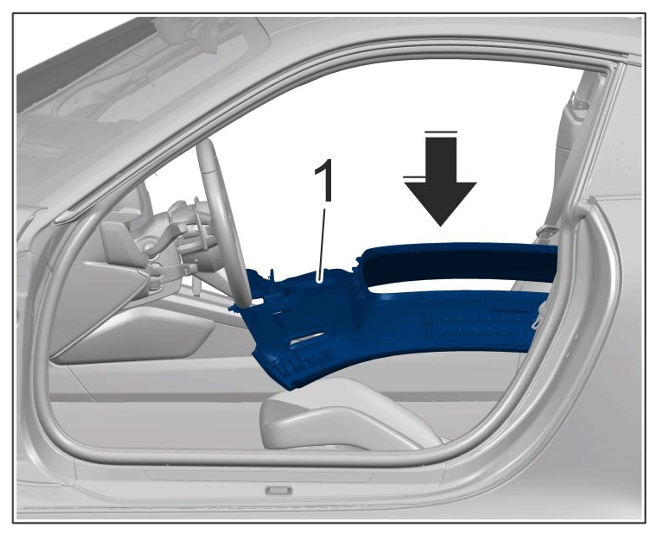

    1. 11.1  Set front headliner -1-  down on the center console.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Headliner on center console

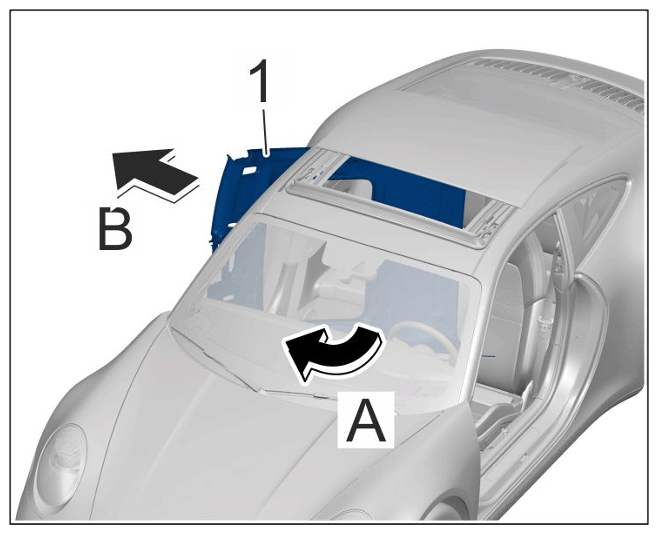

    2. 11.2  Turn headliner clockwise -arrow A-  and remove it through the passenger's side -arrow B-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Turning headliner
