Removing Front Roof Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

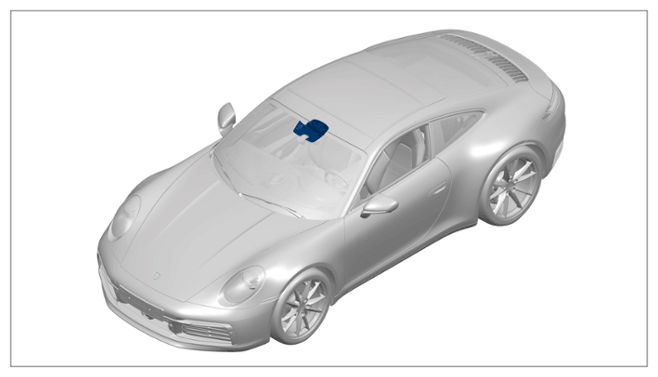

Installation position

1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).

   Information

   The roof console can also be removed without removing the front roof trim panel (center).

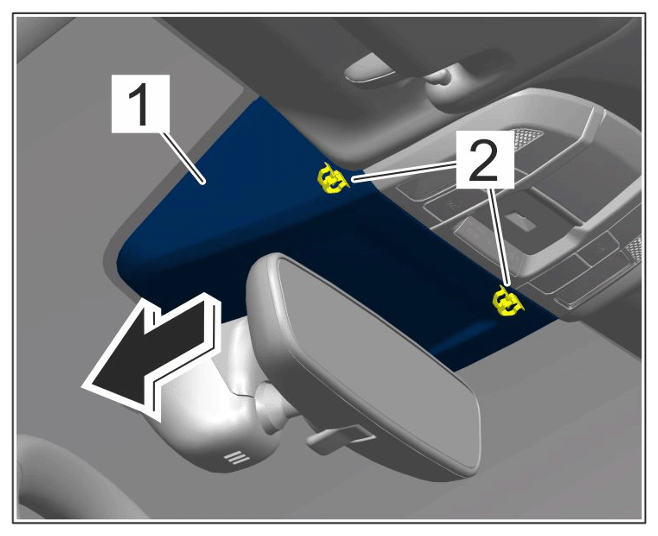

2. Unclip front roof trim panel (center) -1-  by pulling it forward -arrow-  (-2-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front roof trim panel (center)

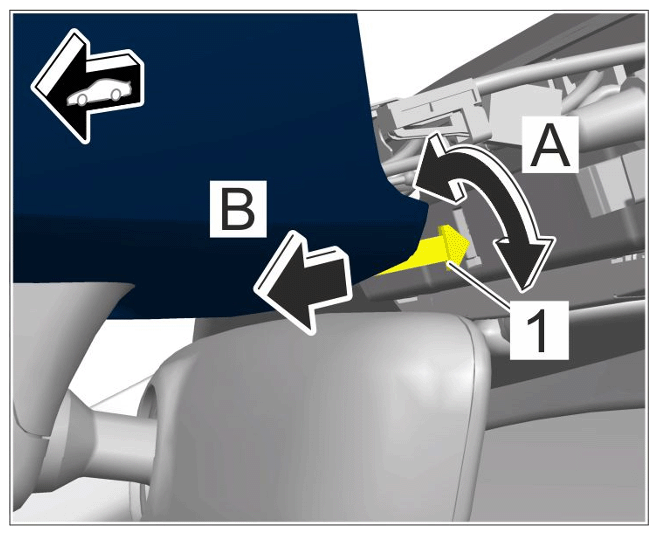

3. Turn the hook on the front roof trim panel -1-  by 90° -arrow A-  and pull it out of the opening -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hook

4. Remove front roof trim panel (center).

   Information

   The grille trim cannot be removed without damaging it irreparably and must be replaced.

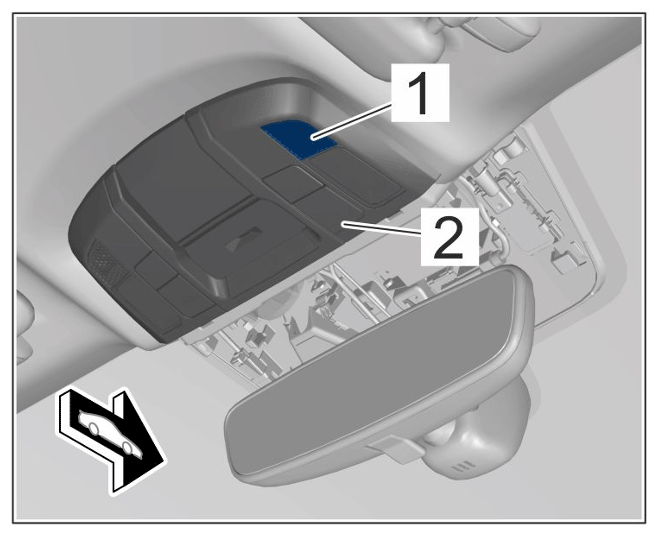

5. Unclip grid cover -1-  from front roof console -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Grille trim

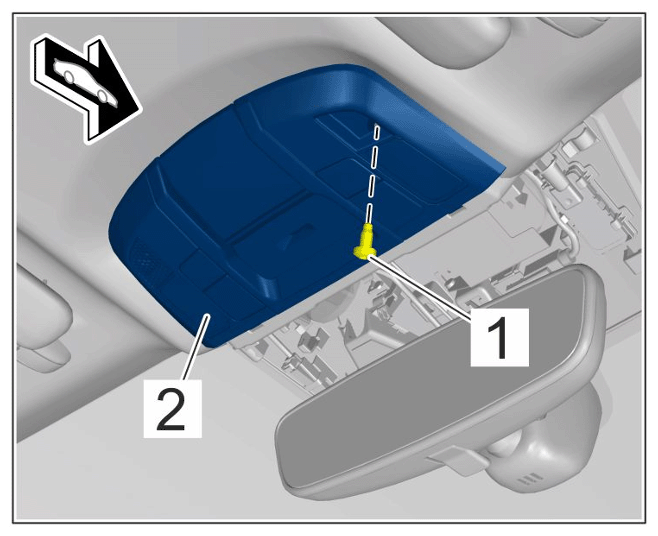

6. Unscrew screw -1-  from front roof console -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screw

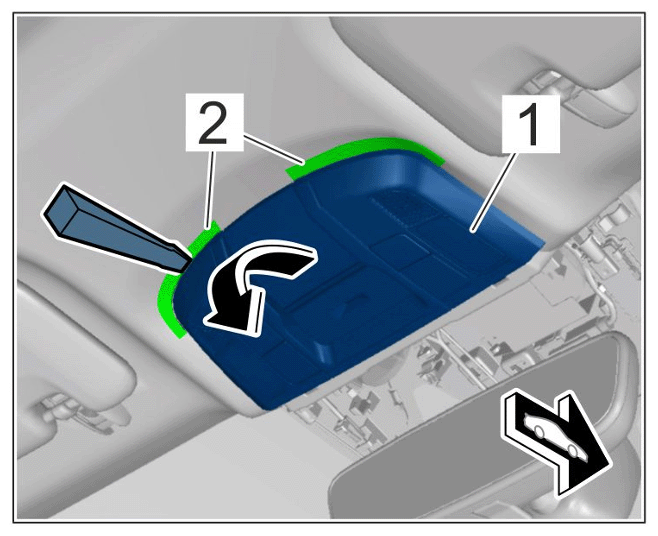

7. Unclip bracket for front roof console -1-  at the marked positions -2-  using an assembly wedge and swivel it downwards -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping

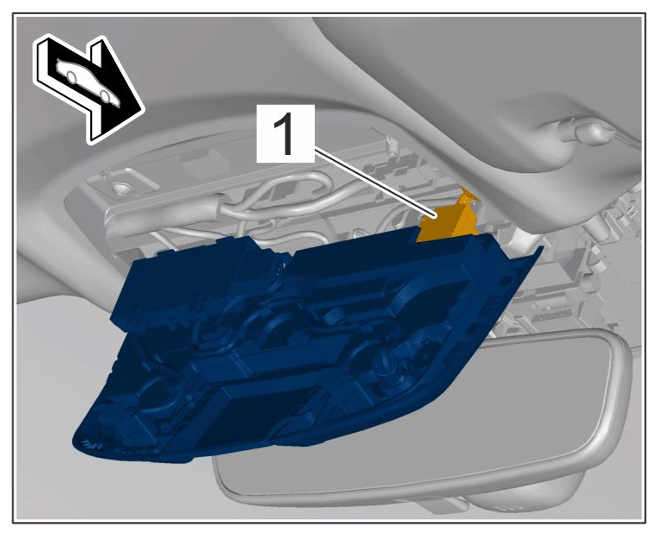

8. Release and disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

9. Disengage front roof console and remove it.
