Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Locking pins for rear seat backrest Item 1 Tightening torque 20 Nm (14.8 ftlb.)

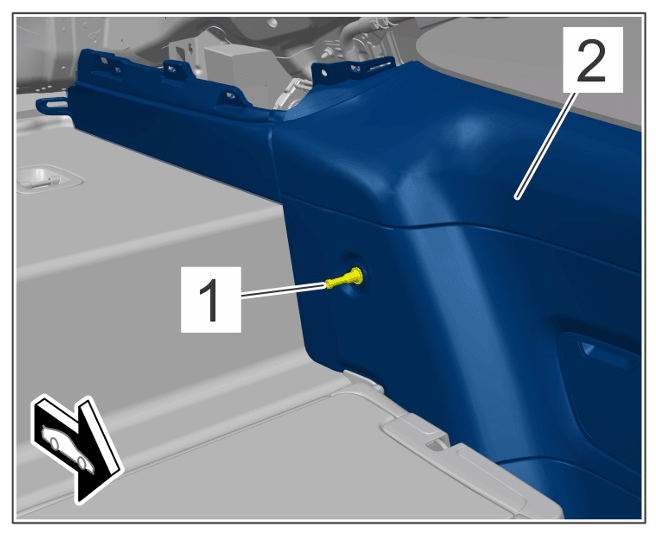

G15534365Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking pins
