Removing Seat Belt Mount

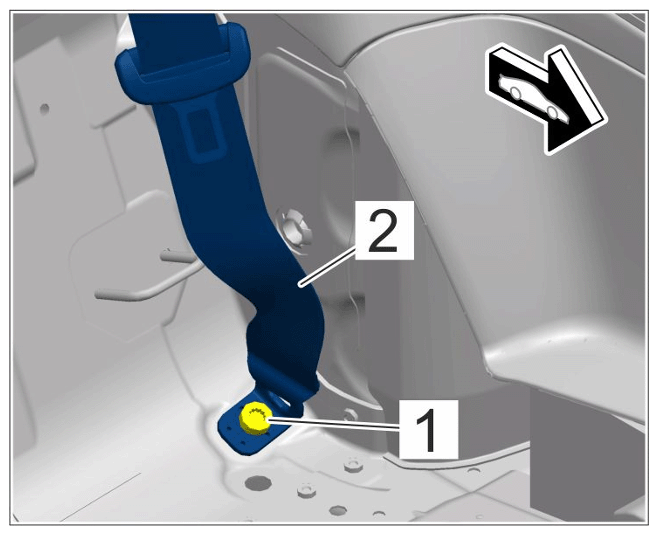

  1. Unscrew screw -1-  on seat belt mount -2-  .

    Replace screw during installation.

    G15534361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Seat belt mount

  2. Remove seat belt mount.

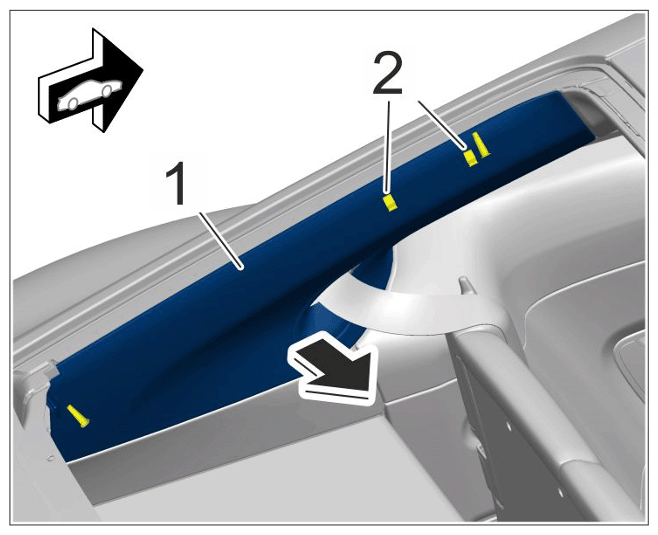

  1. Unclip C-pillar trim panel -1-  by pulling it inwards -Arrow-  (-2-  ) and lift it off.
    G15534362Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping C-pillar trim panel

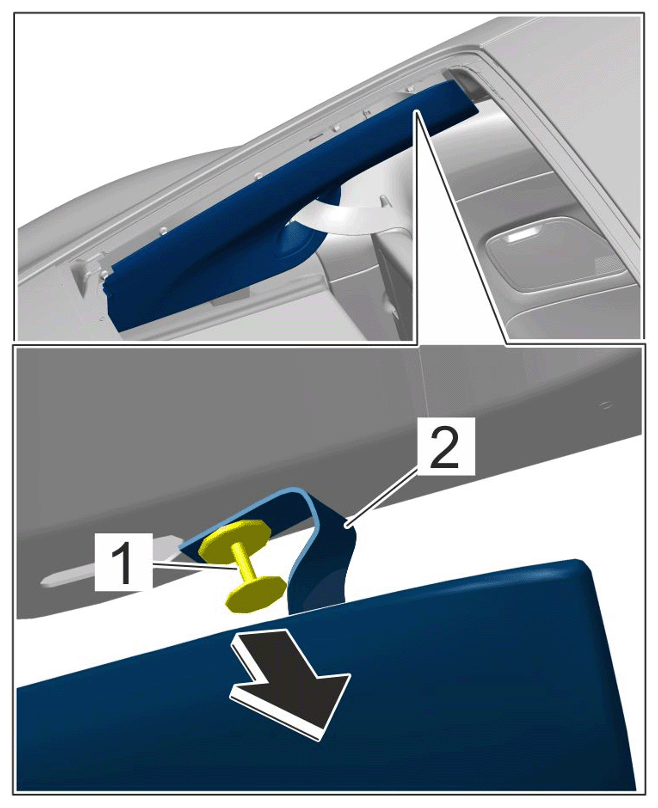

  2. Release expanding clip -1-  (-Arrow-  ) and pull it off together with the rebound strap -2-  .
    G15534363Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening rebound strap

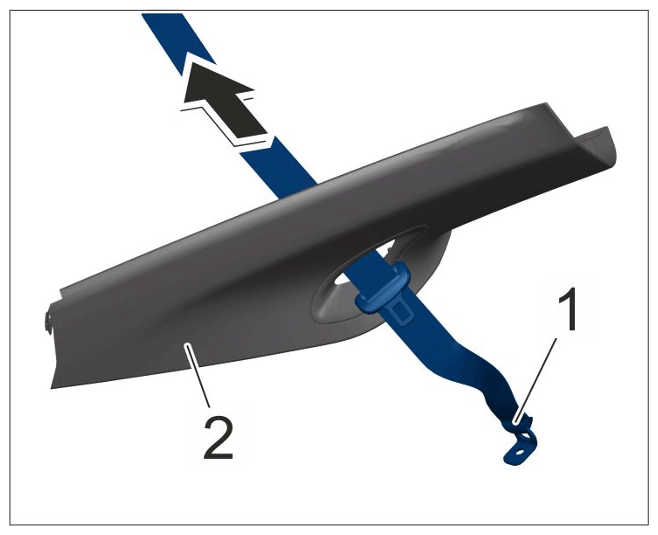

  3. Pull rear three-point belt with seat belt mount -1-  out of the C-pillar trim panel -2-  (-Arrow-  ).
    G15534364Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear three-point belt

  4. Remove C-pillar trim panel.
