| Screw securing belt fitting to door sill |
item 1 |
Tightening torque |
50 Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

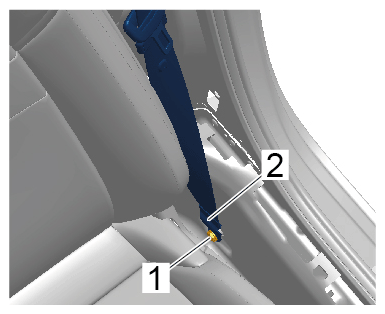

Belt fitting on door sill |
|
|
|
|
|
| Screw securing belt fitting to seat frame |
Item 2 |
Tightening torque |
50 Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

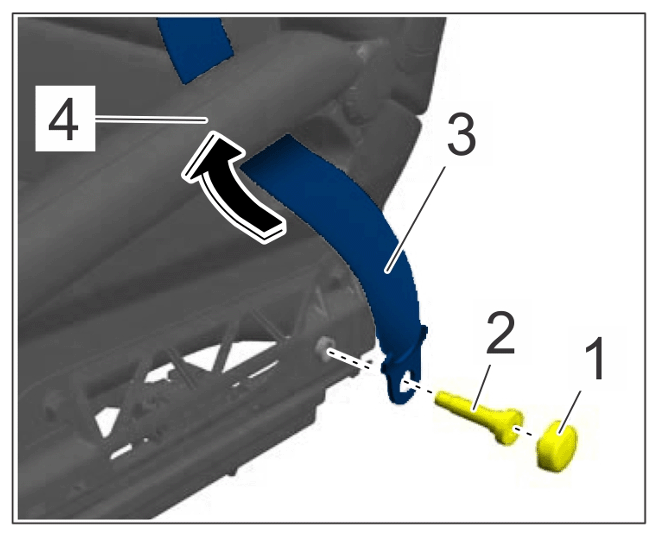

Screw for belt fitting |
|
|
|
|
|
