Removing B-Pillar Trim Panel

Loosen seat belt. Standard seats:

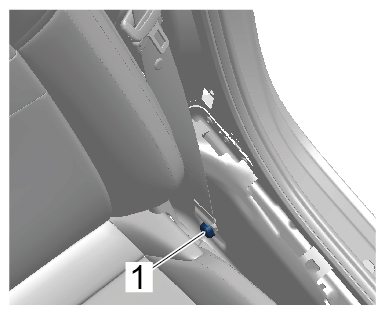

1.1 Pull off cap -1- using a suitable tool.

G15534353

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cap

1.2 Unscrew screw -1- .

G15534354

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

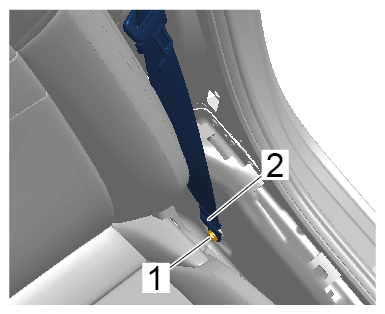

1.3 Remove seat belt mount -2- .

G15534355

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat belt mount

Loosen seat belt -3- . Sports bucket seats:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat belt

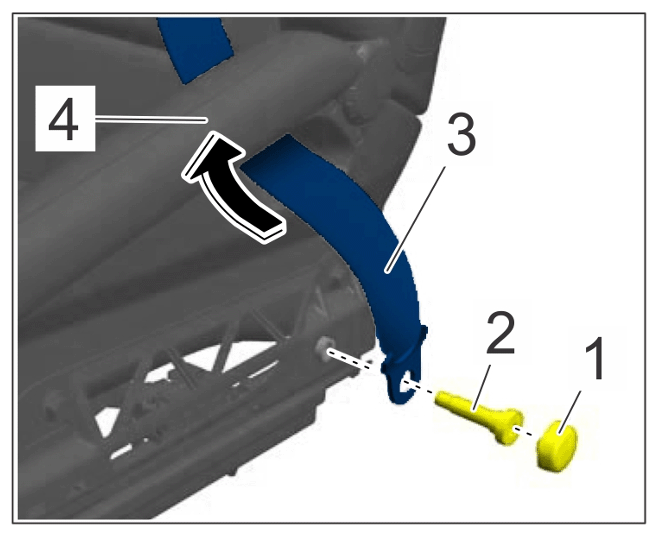

1. 2.1 Pull off cap -1- using a suitable tool.
2. 2.2 Unscrew screw -2- .
3. 2.3 Guide seat belt -3- out of the sports bucket seat -4- . -Arrow-

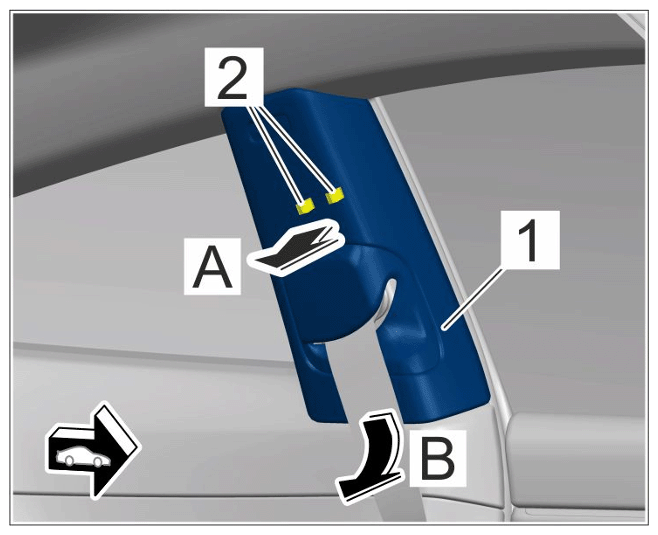

Unclip B-pillar trim panel -1- by pulling it inwards -arrow A- (-2- ) and guide it down -arrow B- and out.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar trim panel

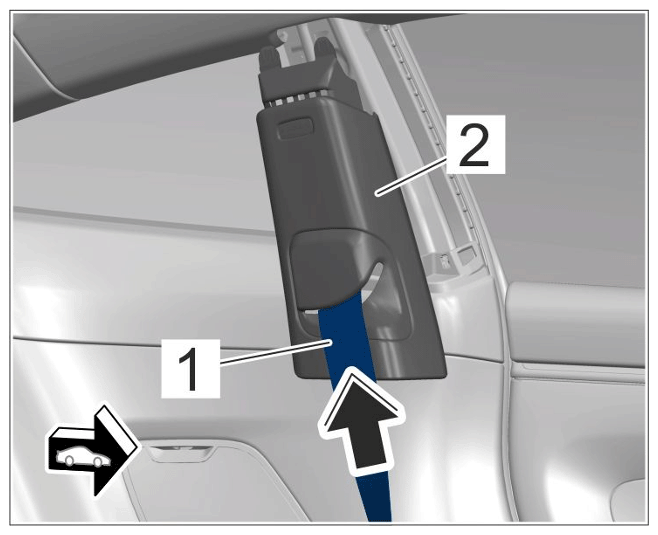

Pull three-point belt -1- with seat belt mount out through the B-pillar trim panel -2- (-Arrow -).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Three-point seat belt
