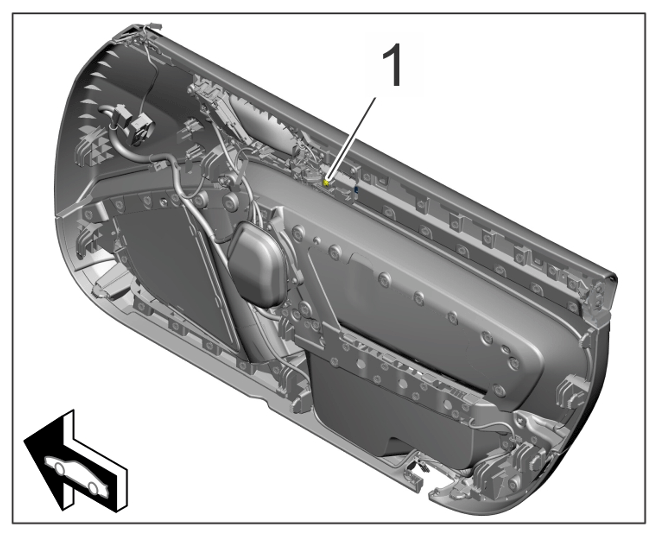

| Screw on strip for door panel |
Item 1 |
Tightening torque |
2.3 Nm (1.7 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
|
|
|
|
|

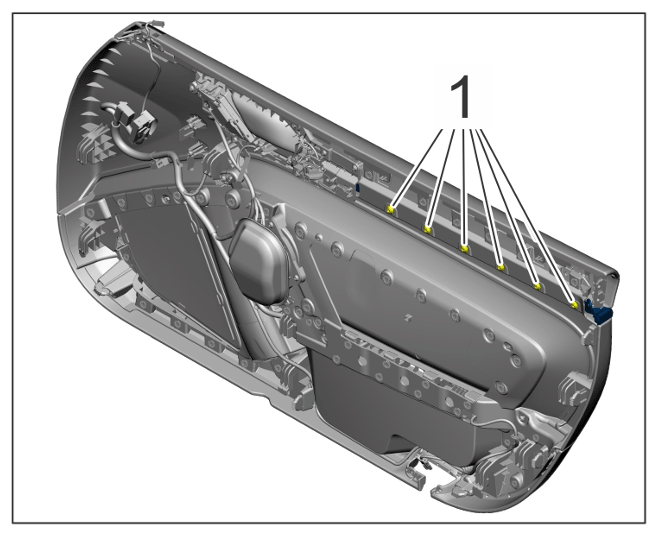

| Screws on strip for door panel |
Item 1 |
Tightening torque |
1 Nm (0.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws |
|
|
|
|
|
