Removing Strip For Door Panel

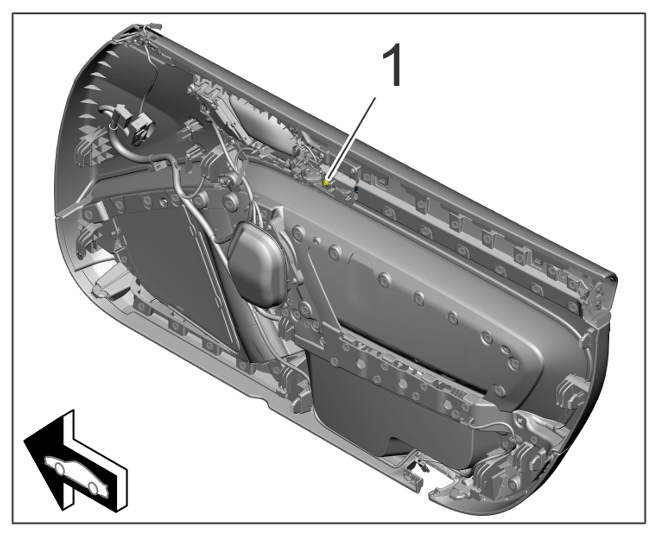

  1. Unscrew screw -1-  .
    G15534346Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

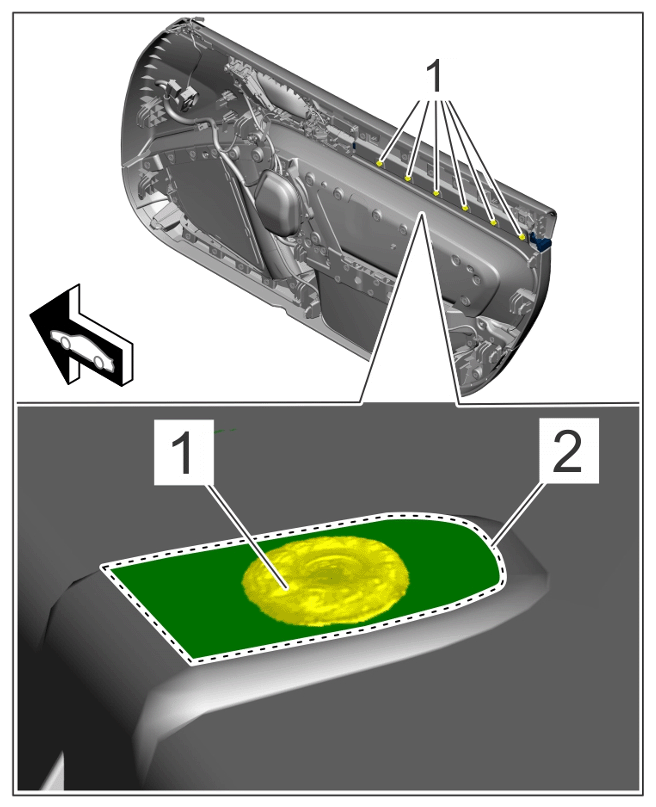

  2. Grind off welding bosses -1-  .
    G15534347Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Welding bosses

    1. 2.1  Carefully remove welding bosses -1-  as far as level -2-  .

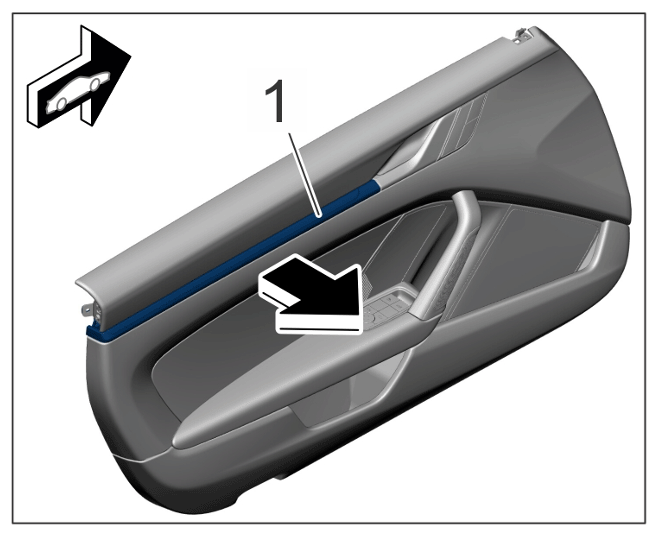

  3. Remove strip for door panel -1-  .
    G15534348Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strip for door panel
