Installing Strip For Door Panel (New Part)
- Position strip for door panel (new part).
- Fit and tighten screw with > Tightening torque 2.3 Nm (1.7 ftlb.)
.
Information
To ensure that the screw head is flat, make sure that the screws are screwed into the welding boss at a central and vertical position when fitting the screws.

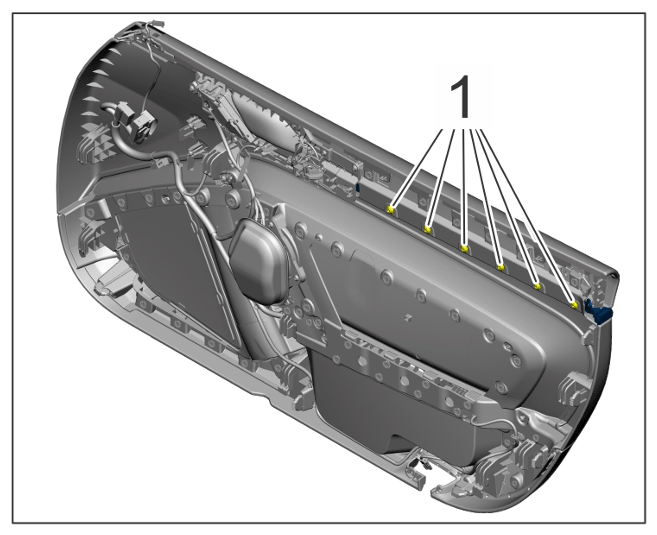

- Fit PAF 011664
screws and N 10625802
washers at position -1-
and tighten to > Tightening torque 1 Nm (0.5 ftlb.)
.
Bolts
