Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Rear screw Item 1 Tightening torque 5.6 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

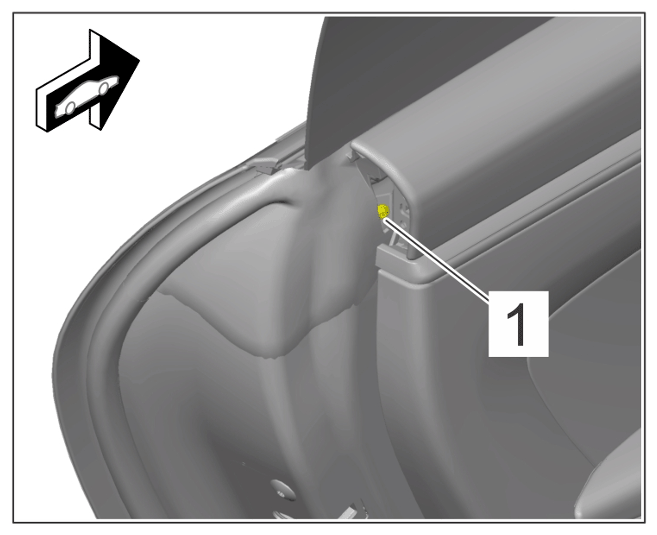

G15534328Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear screw

Front screw Item 1 Tightening torque 5.6 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)

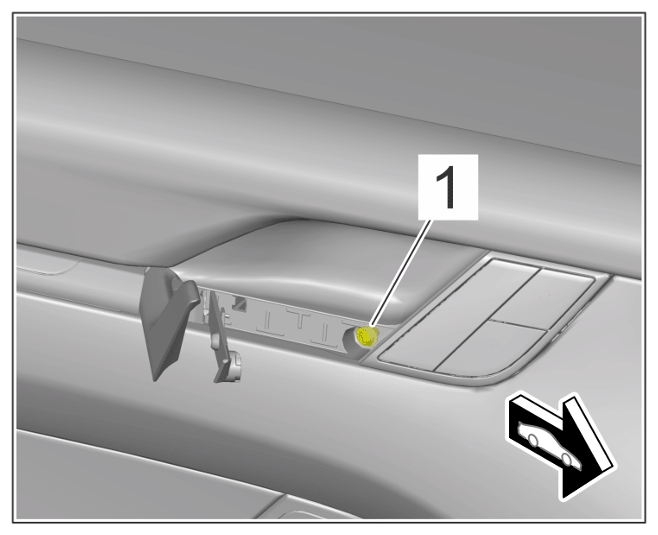

G15534329Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front screw
