Removing Front Door Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

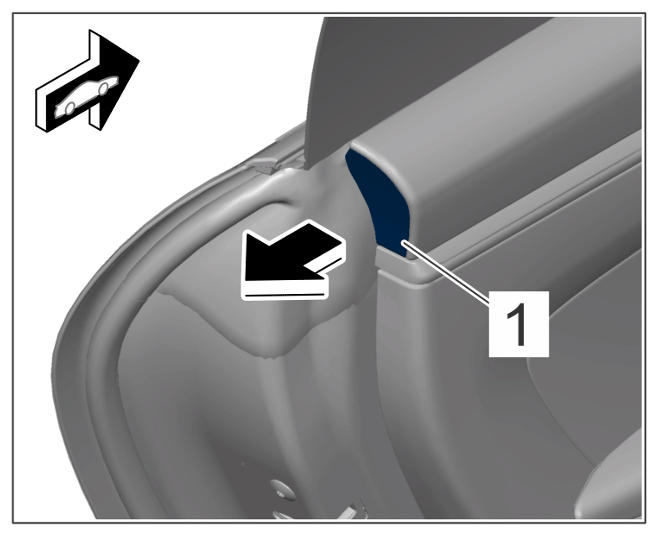

Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

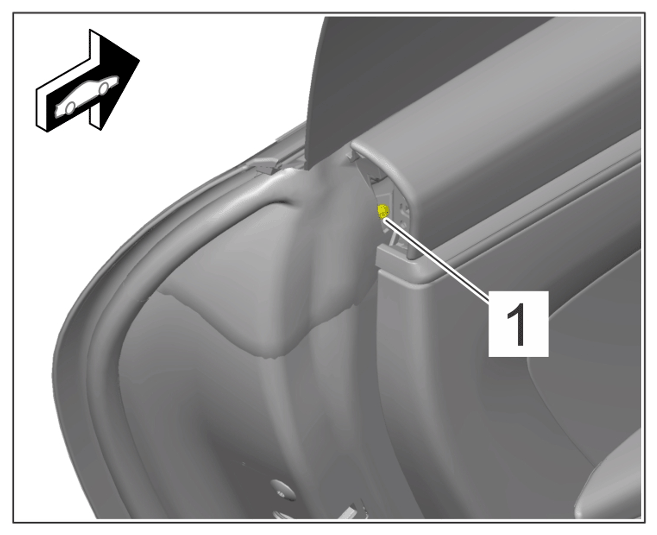

Rear screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

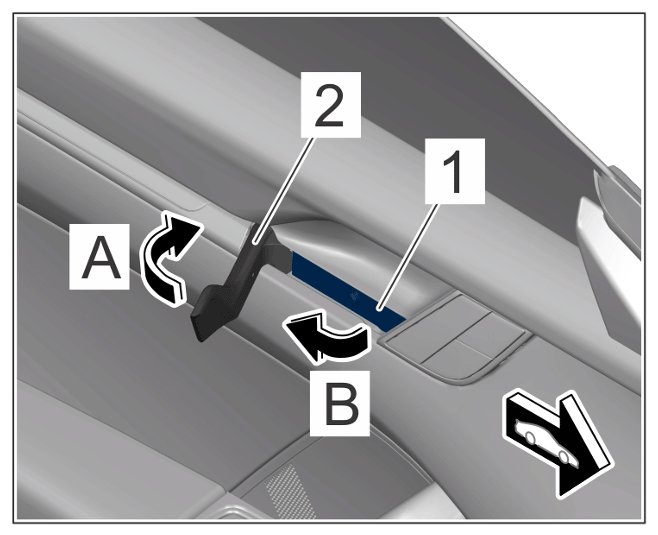

Rubber cover

1. 4.1  Pull inner door release -2-  to the rear -arrow A-  .
2. 4.2  Loosen rubber cover -1-  at the front and fold it towards the rear -arrow B-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

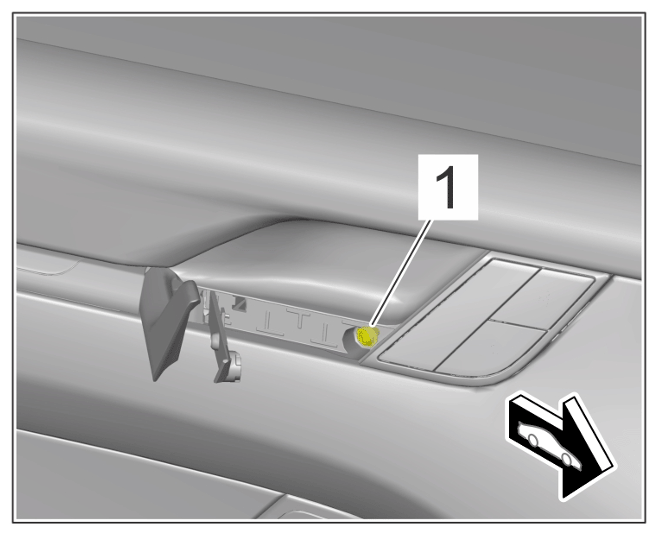

Front screw

Information

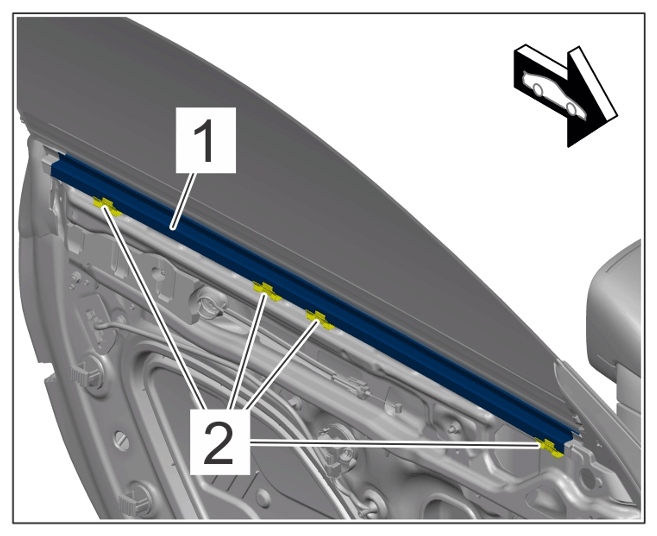

Make sure that the door channel seal -1-  is fitted correctly with the relevant clips -2-  on the basic door frame during removal and installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door channel seal

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

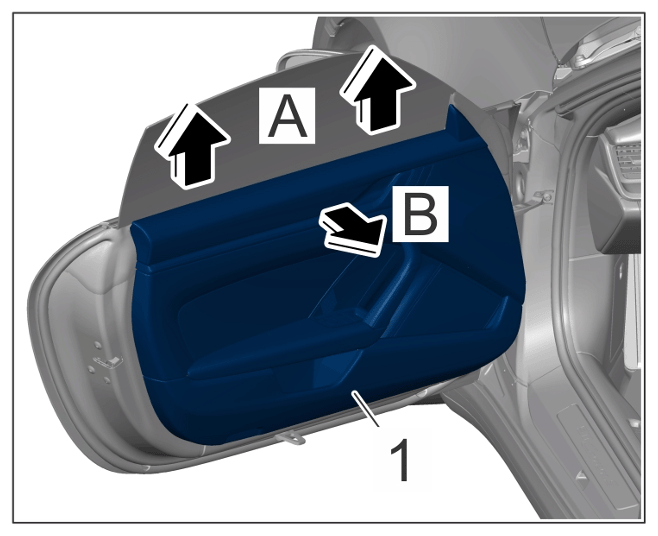

Front door panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

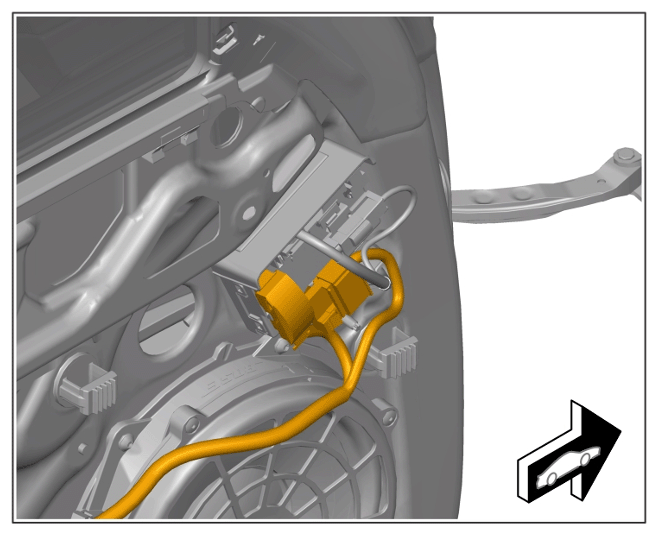

Electric plug connections

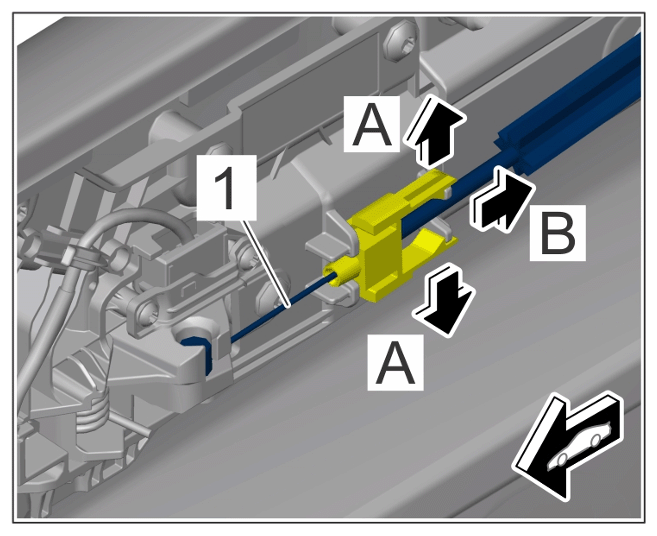

1. 8.1  Unclip bowden cable -1-  (-arrows A-  ) and remove clip from door panel -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bowden cable

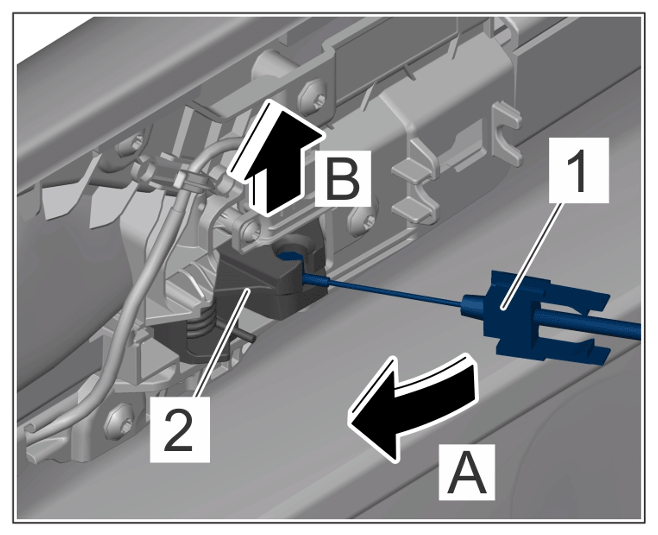

2. 8.2  Turn bowden cable -1-  towards the front -arrow A-  and disengage it from the inner door release -2-  by pulling it upwards -arrow B-.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bowden cable
