Installing Front Door Panel

Information

Make sure that the door channel seal -1-  is fitted correctly with the relevant clips -2-  on the basic door frame during removal and installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door channel seal

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1  The mirror attachment point finisher must be seated correctly in the guide -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

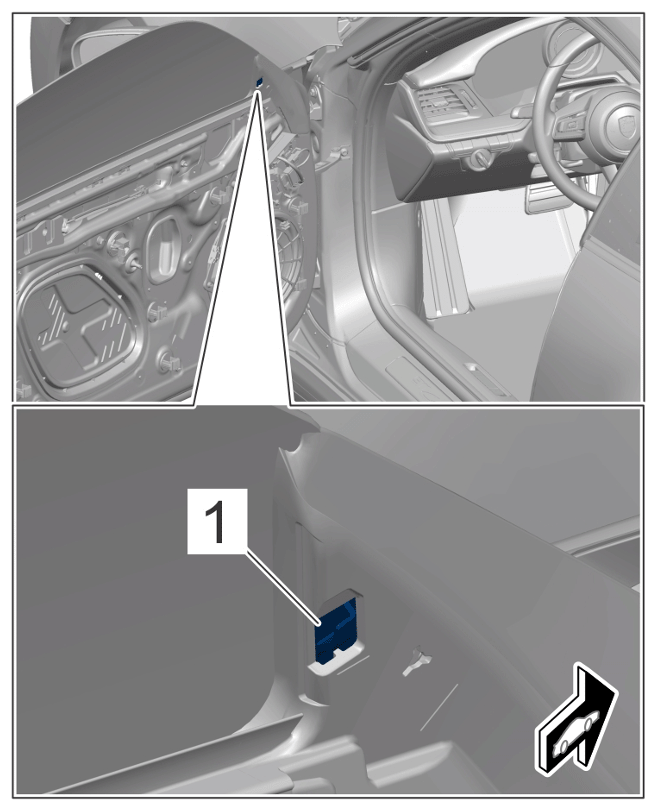

      Guide for mirror attachment point finisher

   2. 1.2  Make sure that the rubber cover -1-  is fitted correctly.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

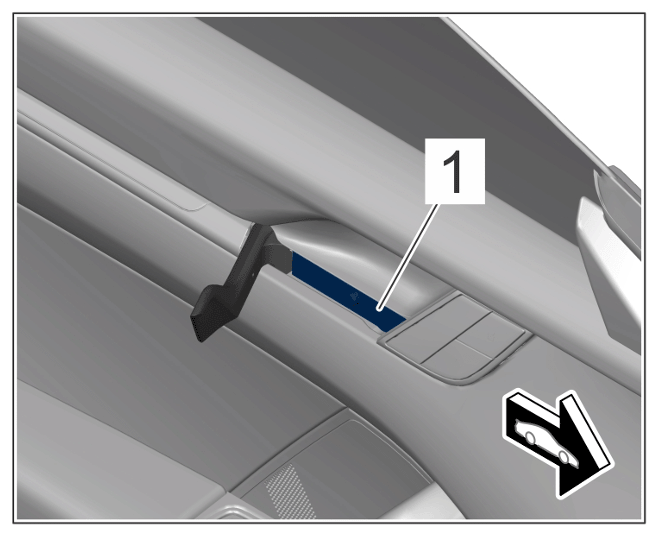

      Rubber cover

2. Tighten front screw to > Tightening torque 5.6 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)  .
3. Tighten rear screw to > Tightening torque 5.6 Nm (4 ftlb.) +/- 0.5 Nm (0.35 ftlb.)  .
