Removing Dashboard Molding On Driver's Side

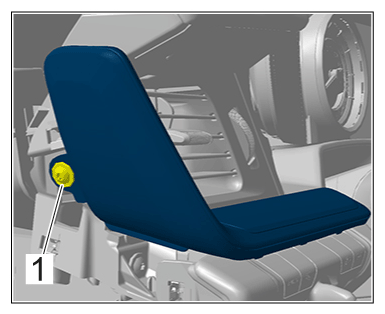

  1. Unscrew screw -1-  .
    G15534317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

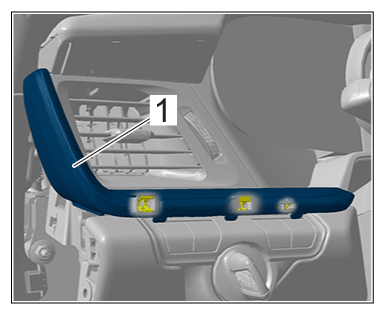

  2. Unclip dashboard molding on driver's side -1-  and remove it.
    G15534318Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Dashboard molding on driver's side
