Removing A-Pillar Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

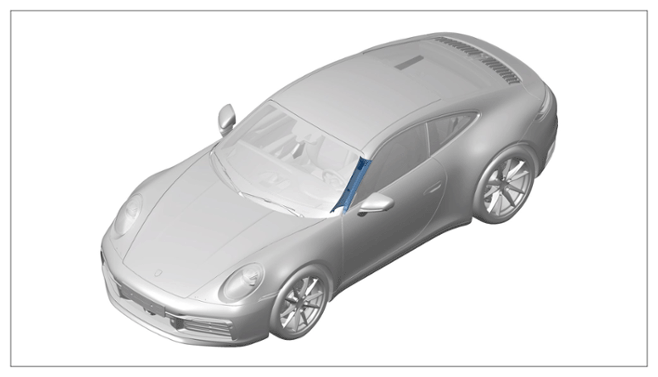

Installation position

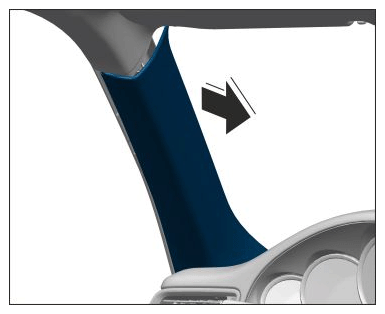

1. Detach A-pillar trim panel at the top until the retaining clip is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   A-pillar trim panel

   Information

   Always use a new clip following removal.

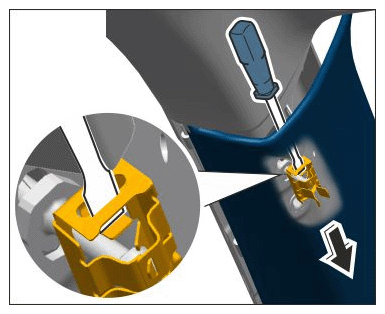

2. Press retaining clip down and release bolts.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining clip on A-pillar trim panel

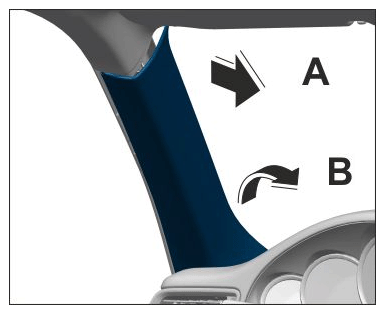

3. Unclip A-pillar trim panel at the windscreen frame -arrow A-  and guide it up and out -arrow B-  .
