Installing A-Pillar Trim Panel

Information

Check that the clips are not bent or broken.

Check that all clips are positioned fully and correctly.

Replace damaged or missing clips with new ones.

1. Replace retaining clip on A-pillar trim panel.

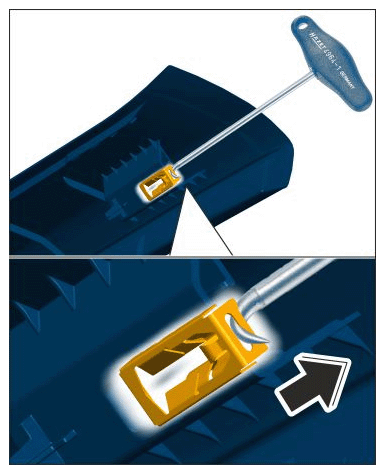

   1. 1.1  Pull off retaining clip using hook wrench > 3438 - Hook  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Retaining clip

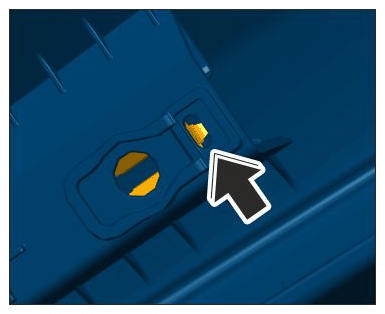

   2. 1.2  Fit new retaining clip on the trim panel and lock it in installation position -arrow-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Retaining clip

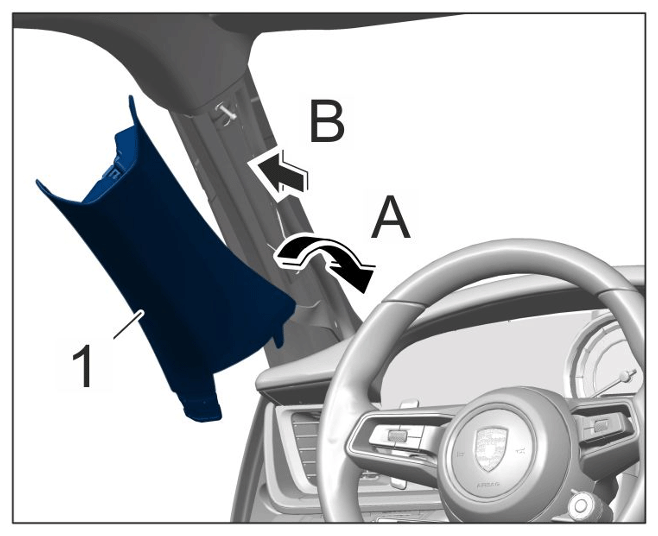

2. Fit A-pillar trim panel -1-  (-arrow A-  ) and clip it in -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   A-pillar trim panel
