Removing Rear Cover

  1. Fold rear backrest forward

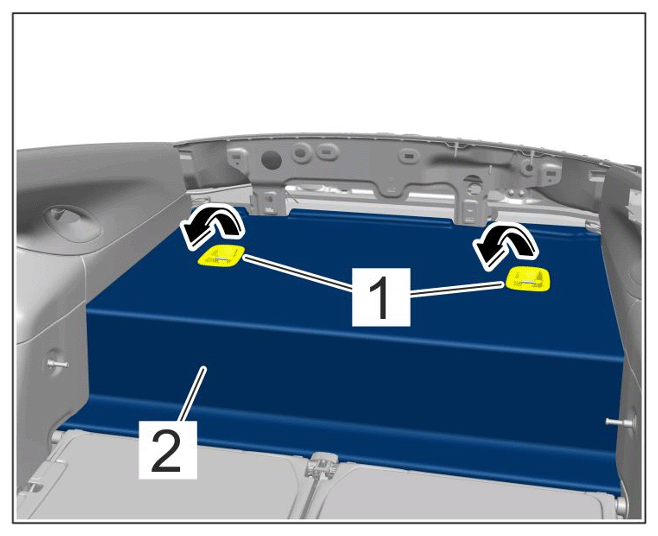

  2. Unclip trims -1-  from rear cover -2-  (-arrow-  ).
    G15534303Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trims

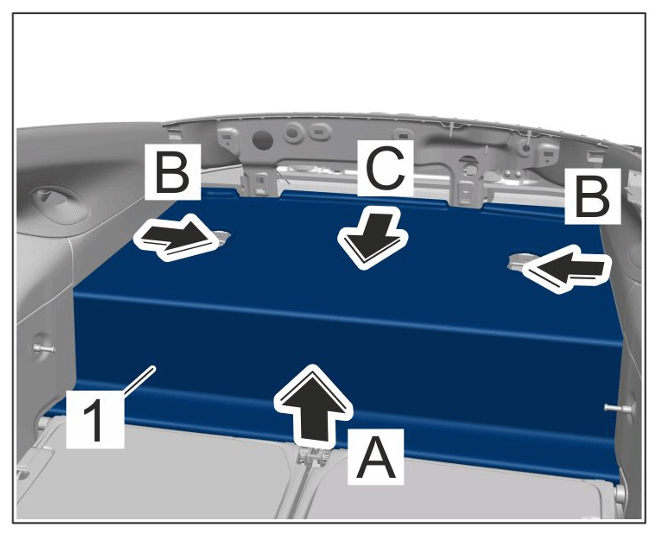

  3. Remove rear cover -1-  .
    G15534304Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover

    1. 3.1  Lift up rear cover -1-  at the front in the rear backrest area -arrow A-  .
    2. 3.2  Guide rear cover -1-  at the side out of the rear side trim panel -arrow B-  .
    3. 3.3  Remove rear cover -1-  by pulling it forward -arrow C-  .
