Removing Carpet

  1. Unclip locking pin -1-  .
    G15534299Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking pin

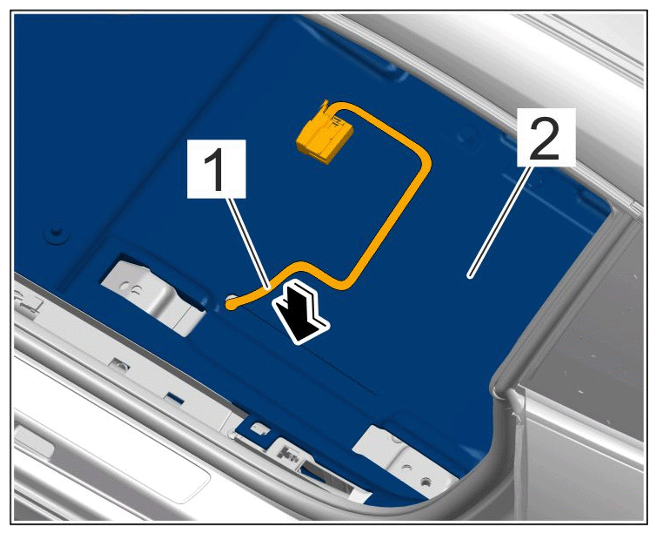

  2. Guide electric line -1-  out of the floor covering -2-  (-arrow-  ).
    G15534300Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line

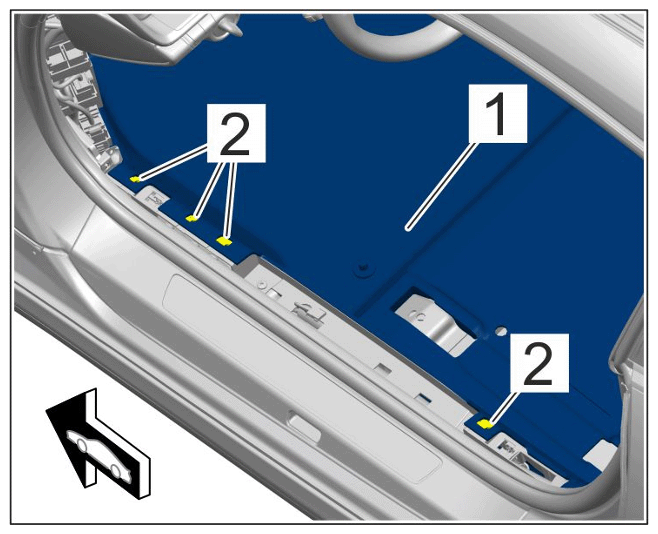

  3. Detach floor covering -1-  in the door sill area -2-  .
    G15534301Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Detaching floor covering

  4. Remove carpet.
