Removing Cover For Lock Support

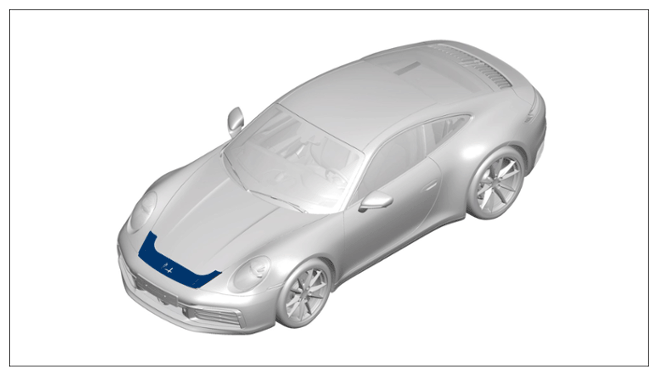

G15534291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

  1. Unclip cover for lock support -1-  (-2-  ).

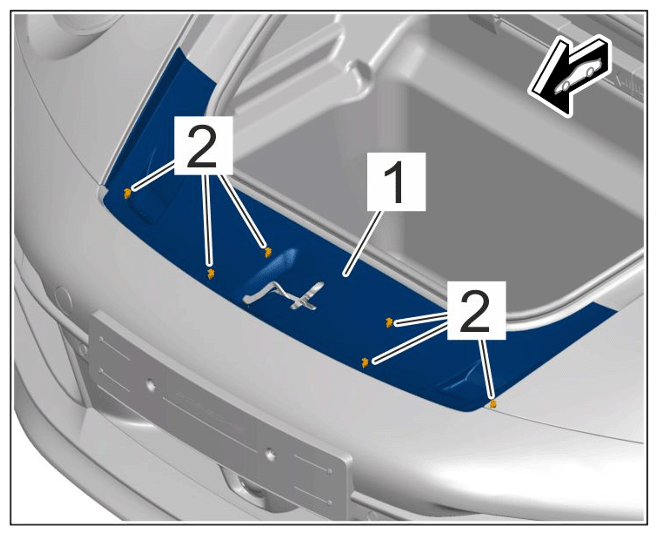

    G15534292Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclipping cover for lock support

  2. Remove cover for lock support -1-  by pulling it forward -arrow-  .

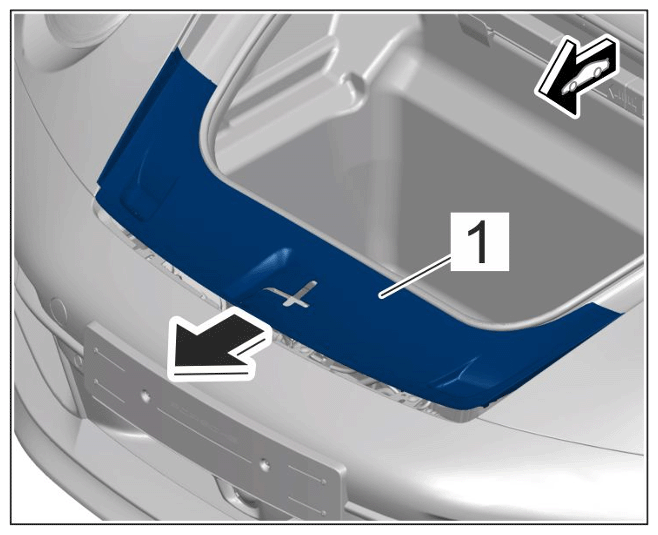

    G15534293Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing cover for lock support by pulling it forward
