Removing Trim Panel For Seat Well

  1. Remove trim panel for seat well -1-  .

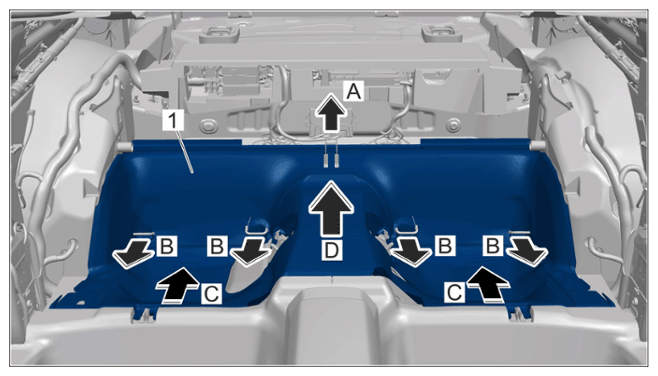

    G15534288Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for seat well

    1. 1.1  Guide trim panel for seat well at the rear up over the backrest pivot bearing -arrow A-  .
    2. 1.2  Guide trim panel for seat well over the ISOFIX bracket -arrows B-  .
    3. 1.3  Pull trim panel for seat well at the front out of the floor covering to the rear -arrows C-  .
    4. 1.4  Remove trim panel for seat well by pulling it upwards -arrow D-  .
