Removing Dashboard Cover

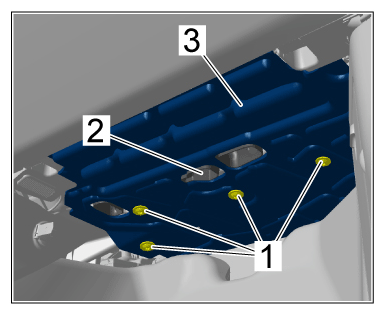

  1. Remove dashboard cover -3-  .
    1. 1.1  Unscrew clips -1-  .
    2. 1.2  Press footwell outlet vent -2-  aside slightly and remove dashboard cover -3-  .
      G15534282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Clips
