Removing Dashboard Trim Panel

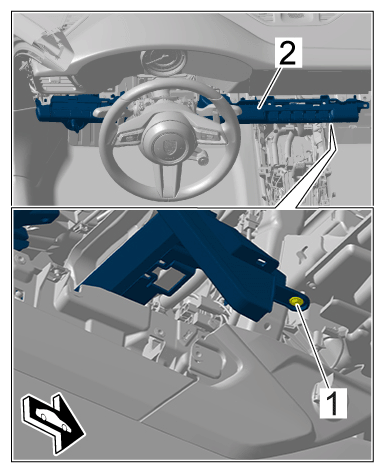

  1. Unscrew bottom right screw -1-  from dashboard trim panel -2-  .
    G15534277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bottom right screws

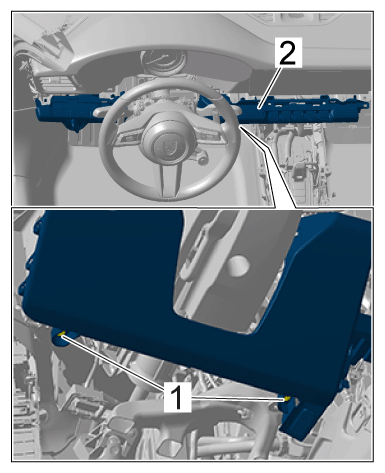

  2. Unscrew bottom left screws -1-  from dashboard trim panel -2-  .
    G15534278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bottom left screws

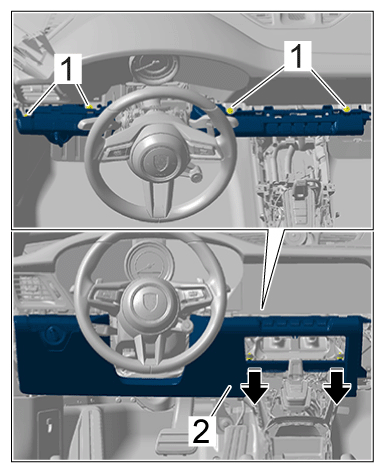

  3. Loosen dashboard trim panel -2-  .
    1. 3.1  Unscrew screws at the top -1-  .
    2. 3.2  Unclip dashboard trim panel -2-  by pulling it downwards -Arrows-  and loosen it until the electric plug connections are accessible.
      G15534279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Top screws

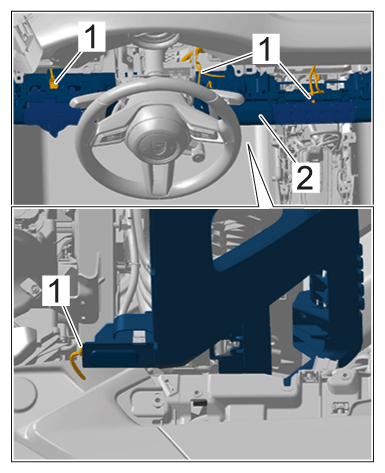

  4. Release and unplug electric plug connections -1-  .
    G15534280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

  5. Remove dashboard trim panel.
