Removing Dashboard

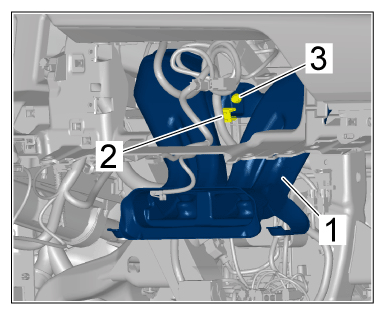

1. 1.1  Unclip line bracket -2-  from air duct -1-  .
2. 1.2  Unclip air duct -1-  from retaining lug -3-  and guide it down and out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air duct

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

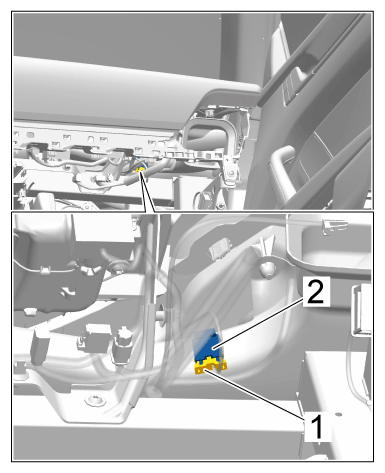

Right temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

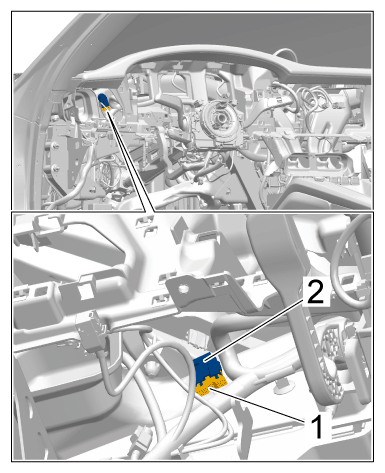

Left temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

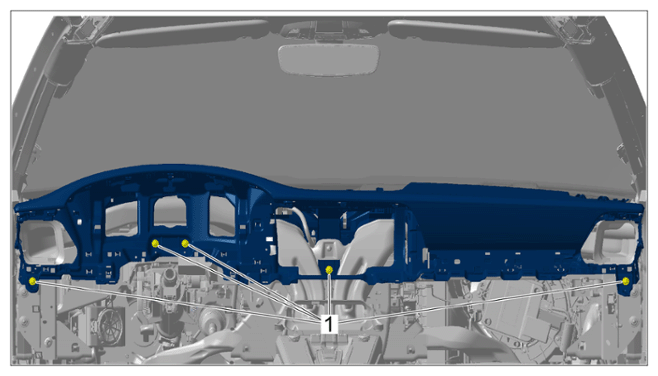

Screws

Information

The help of another person is required.

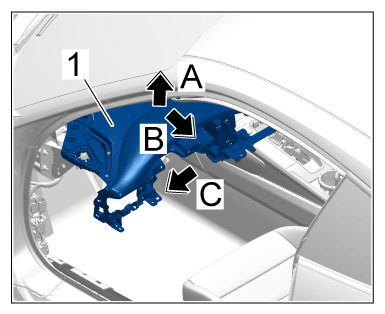

1. 5.1  Detach dashboard -1-  by pulling it upwards -arrow A-
2. 5.2  Guide dashboard -1-  to the rear -arrow B-
3. 5.3  Guide dashboard -1-  out of the driver's door -arrow C-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Dashboard
