Removing Trim Panel For Convertible Top Compartment

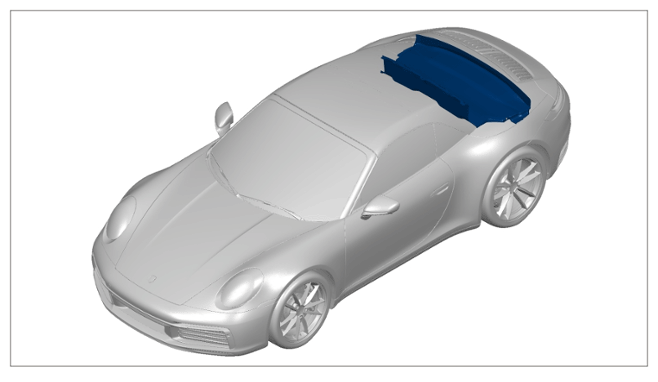

G15534261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

  1. Remove caps -1-arrow-

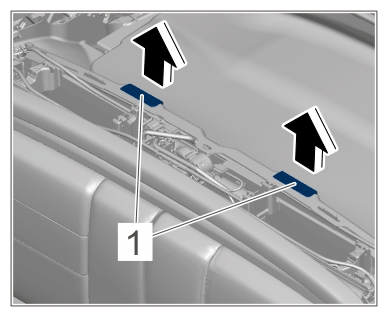

    G15534262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Caps

  2. Loosen trim panel for convertible top compartment.

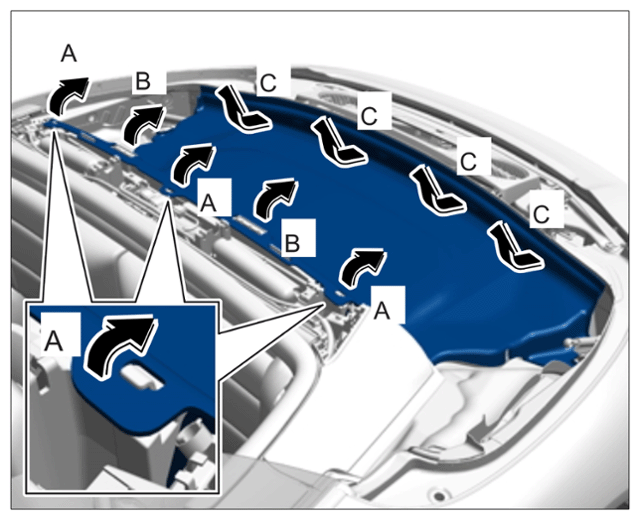

    G15534263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trim panel for convertible top compartment

    1. 2.1  Disengage fastening eyelets. -arrow A-
    2. 2.2  Guide out trim panel for convertible top compartment. -arrow B and C-
  3. Remove trim panel for convertible top compartment by pulling it towards the convertible-top compartment lid.
