Removing Front Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

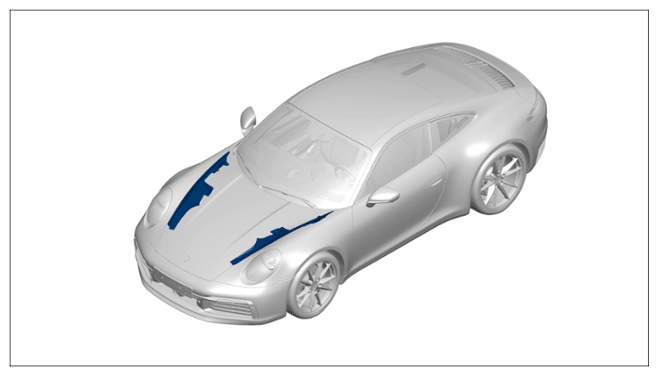

Installation position

Information

Side clips on the front trim panel must not be unclipped by hand as this would result in permanent deformation of the trim panel.

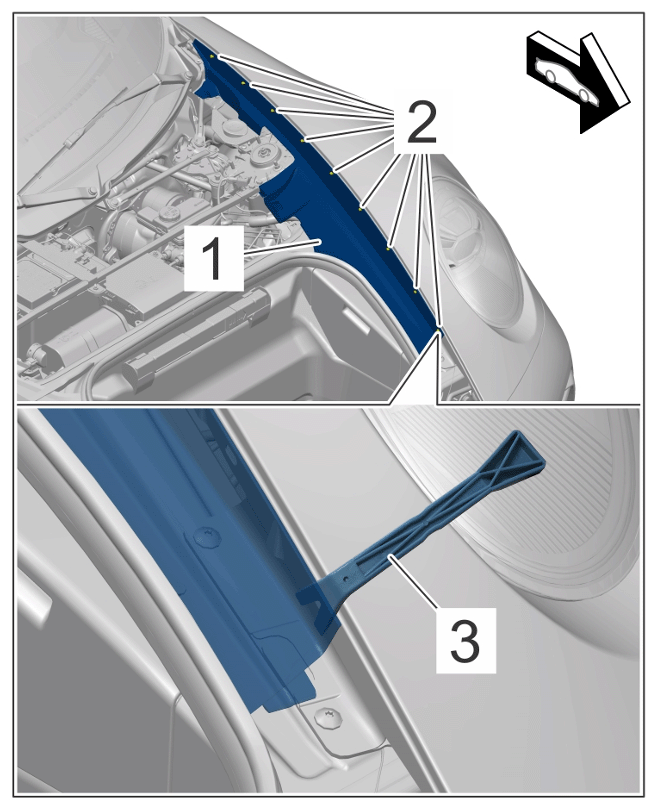

1. Unclip front trim panel -1-  using > VAS 6845 - Scraper/spatula/lever set  , wedge no. 5 -3- carefully  straight off the wing -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Side clips

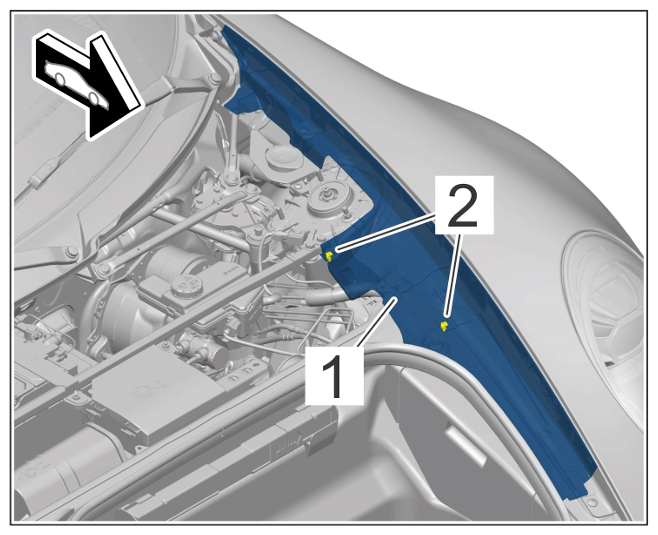

2. Unclip front trim panel -1-  at the center -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clips

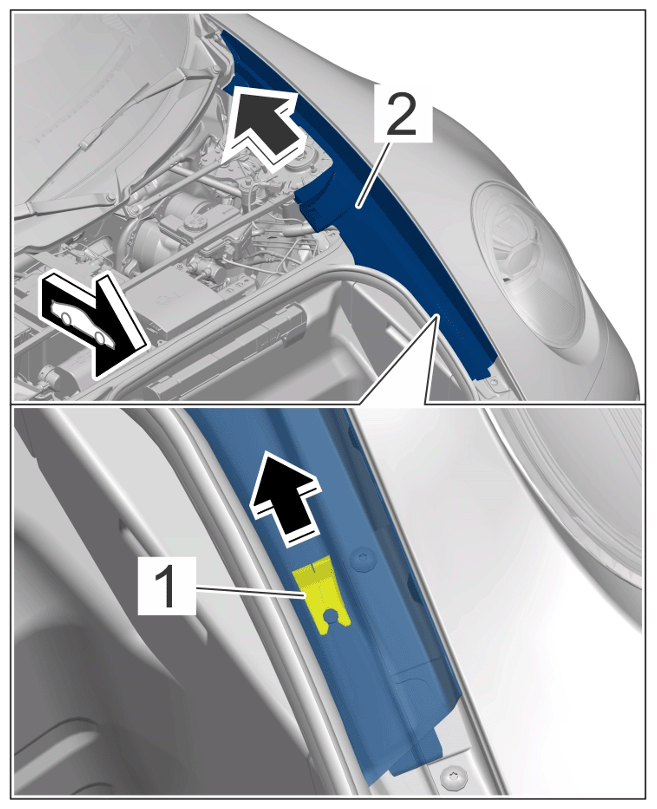

3. Remove guide -1-  for front trim panel -2-  by pulling it to the rear -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guide

4. Remove front trim panel.
