Technical Values

Location	Description	Type	Basic value

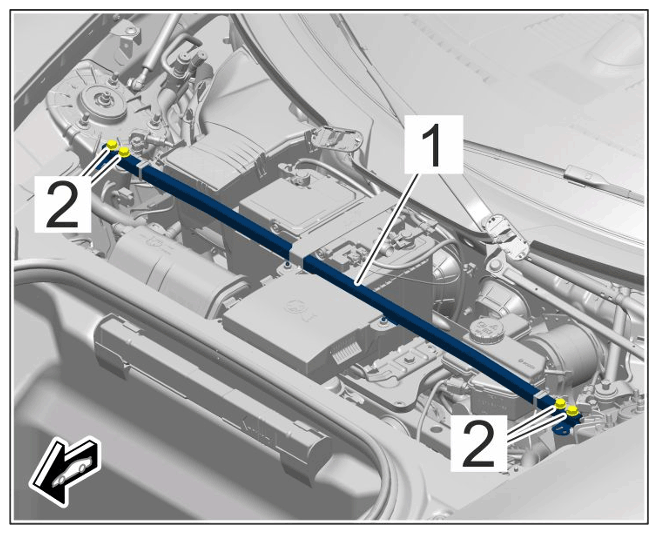

Dome strut to body	Item 2: Hexagon-head bolt, M8 x 45	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Strut mounting

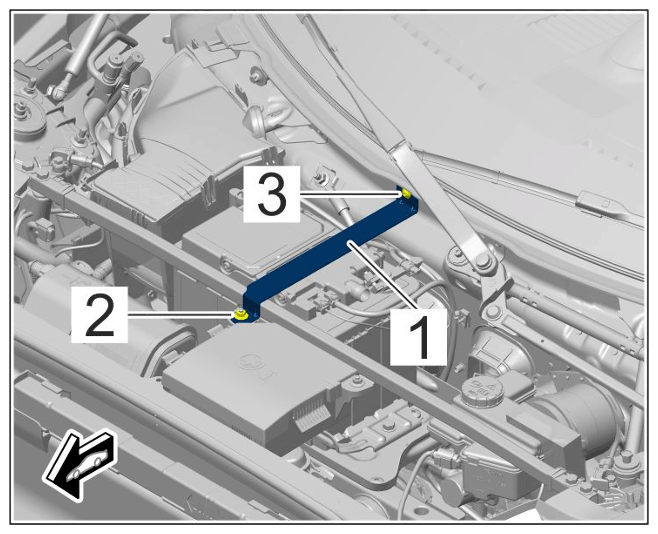

Compressor holder to dome strut	Items 2 and 3/hexagon nut, M6	Tightening torque	7 Nm (5.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for compressor holder

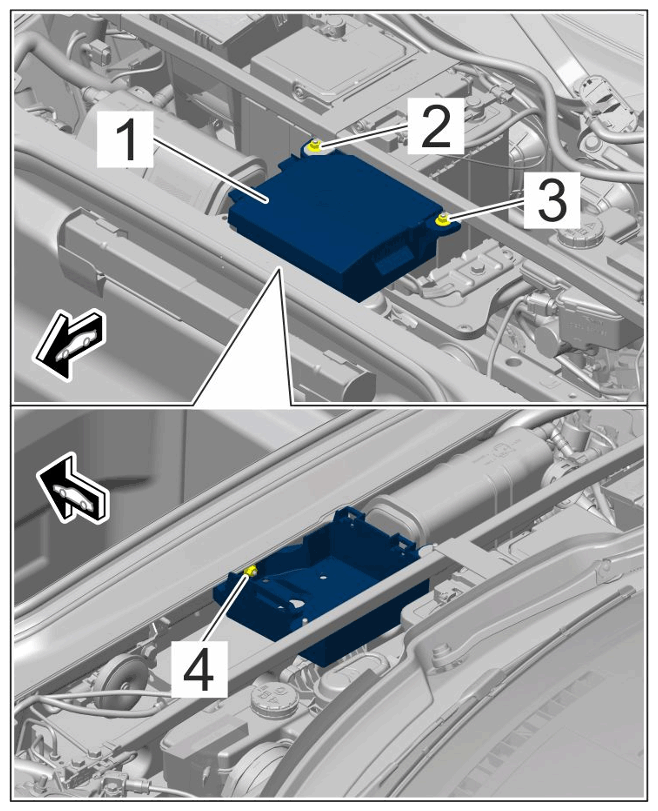

Compressor holder to body	Item 4/hexagon nut, M6	Tightening torque	7 Nm (5.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for compressor holder
Clamp securing battery to bulkhead	Item 3/ovalhead screw, M6 x 20	Tightening torque	9.7 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for battery clamp
