Removing Connecting Link For Anti-Roll Bar

  1. Remove connecting link for anti-roll bar -1-  from the anti-roll bar.
    1. 1.1 Unscrew nut -2-  and counter at the articulated bolt on the connecting link.
  2. Remove connecting link for anti-roll bar -1-  from the wheel bearing housing.
    1. 2.1 Support wheel bearing housing using >VAS 6931 - Transmission and Engine Jack  .
    2. 2.2 Unscrew nut -3-  and counter at the hexagon -4-  on the connecting link.

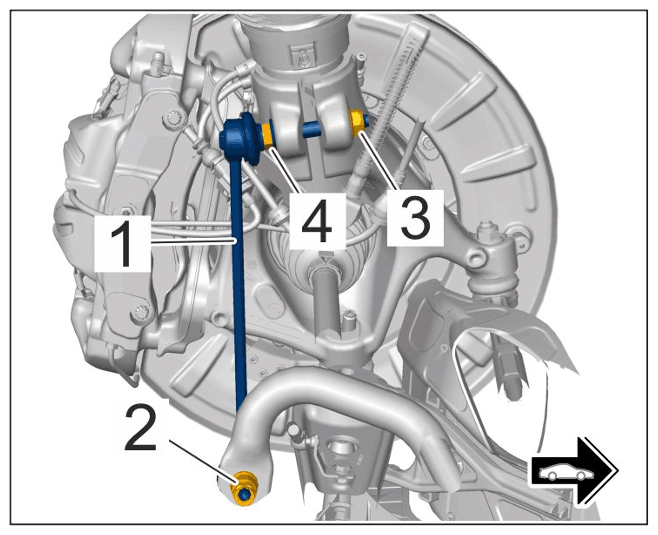

G15519379Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link
