Installing Connecting Link For Anti-Roll Bar

1. Fit connecting link for anti-roll bar -1-  on the wheel bearing housing.

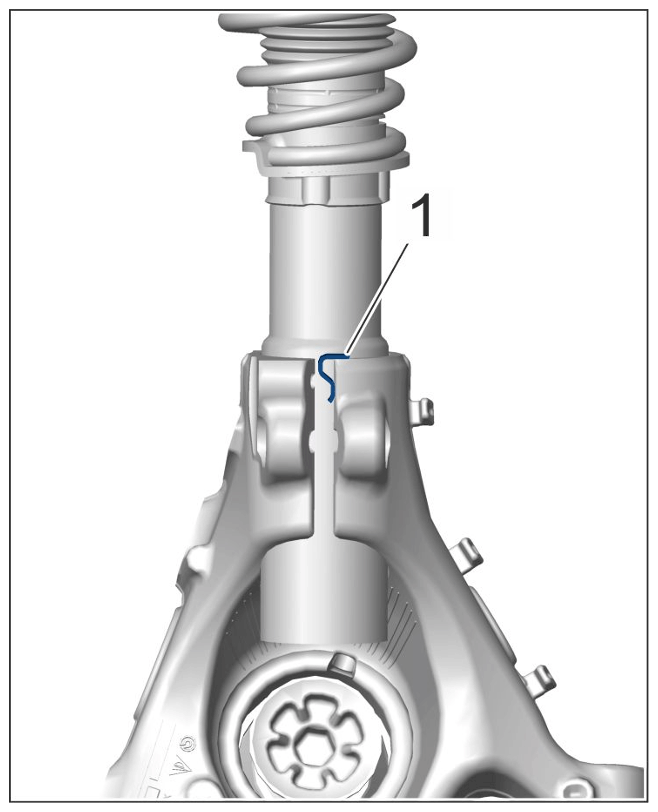

   1. 1.1 Check whether the wheel bearing housing is making direct contact with the position plate -1-  of the spring strut.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Position plate

   2. 1.2 Tighten nut -3-  . >Initial tightening 40 Nm (30 ftlb.)  > Final tightening + 180°
2. Fit connecting link for anti-roll bar -1-  on the anti-roll bar.
   1. 2.1 Tighten nut -2-  . >Initial tightening 40 Nm (29.5 ftlb.)  > Final tightening + 30°

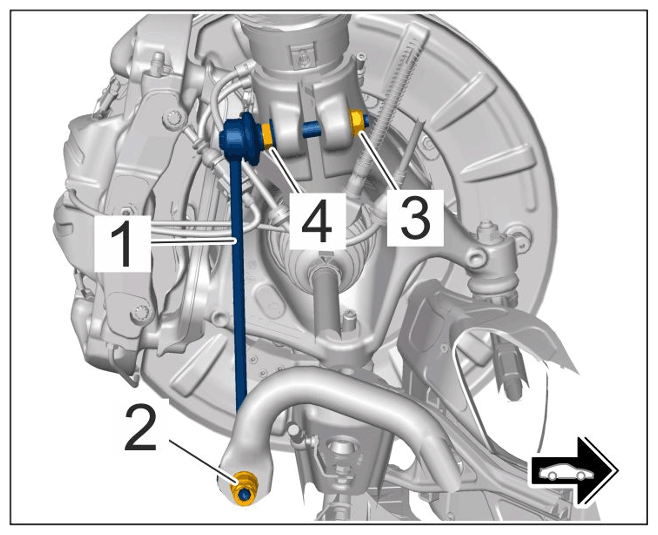

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link
