Installing Connecting Link For Anti-Roll Bar (PDCC)

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

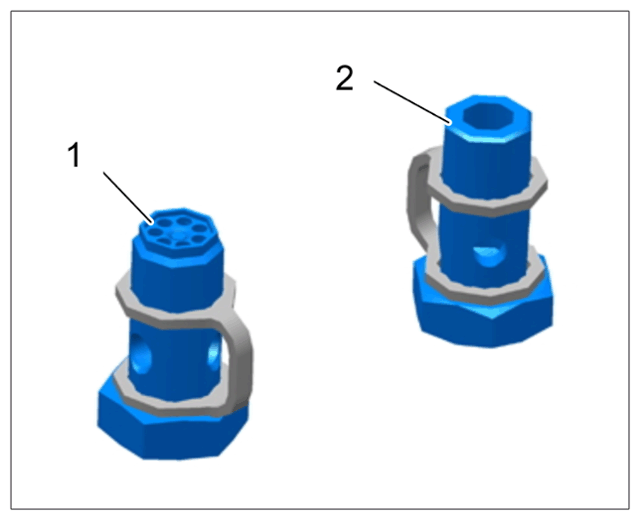

Banjo bolts

• Different banjo bolts are used to secure the pressure lines to the connecting link.
• Lower banjo bolt with check valve -1- , conventional upper banjo bolt -2-  .
• Replace double seal on banjo bolts.

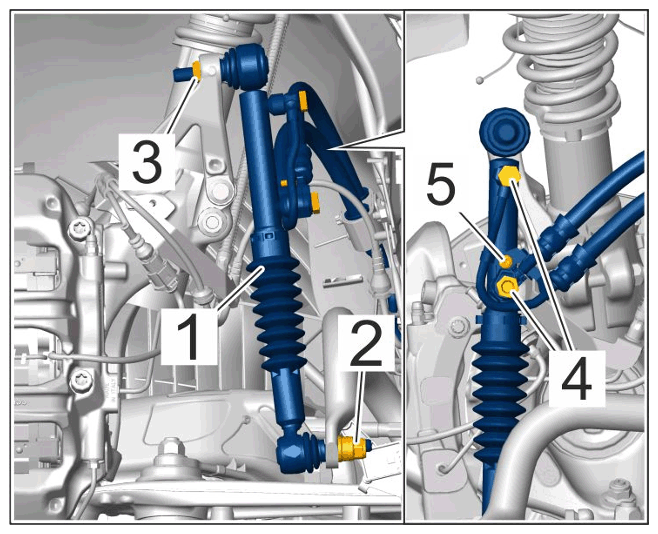

1. Fit connecting link for anti-roll bar -1-  on the PDCC adapter.
   1. 1.1 Tighten nut -3-  . >Initial tightening 50 Nm (37 ftlb.)  > Final tightening + 50°
2. Fit connecting link for anti-roll bar -1-  on the anti-roll bar.
   1. 2.1 Tighten nut -2-  . >Initial tightening 50 Nm (37 ftlb.)  > Final tightening + 50°
3. Fit pressure lines on connecting link for anti-roll bar -1-  .
   1. 3.1 Tighten screws -4-  . >Tightening torque 26 Nm (19 ftlb.)
   2. 3.2 Tighten screw -5-  on bracket for pressure lines. >Tightening torque 10 Nm (7.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for connecting link for anti-roll bar (PDCC)
