Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Roll bar clamp to front-axle cross member Item 2: Hexagon-head bolt M10 x 75 and hexagon nut Tightening torque 65 Nm (48 ftlb.)

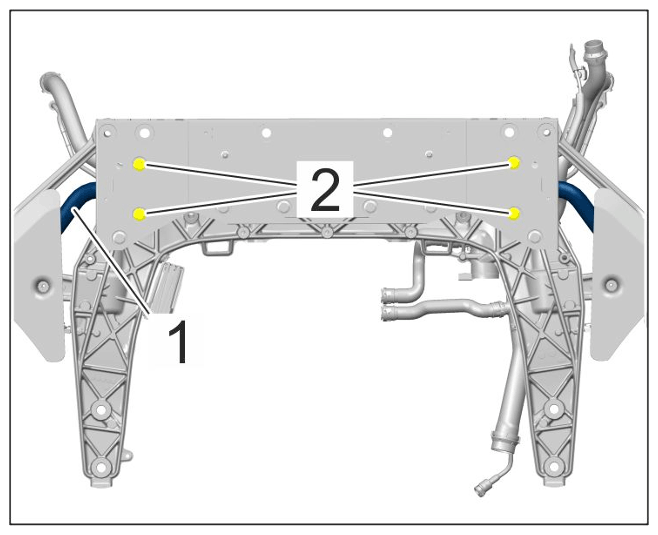

G15519371Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Anti-roll bar mount
