Removing Anti-Roll Bar

  1. Unclip holder for coolant lines -1-  from the anti-roll bar clamp -2-  .
    G15519373Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant line holders

  2. Remove anti-roll bar -1-  from the front-axle cross member.

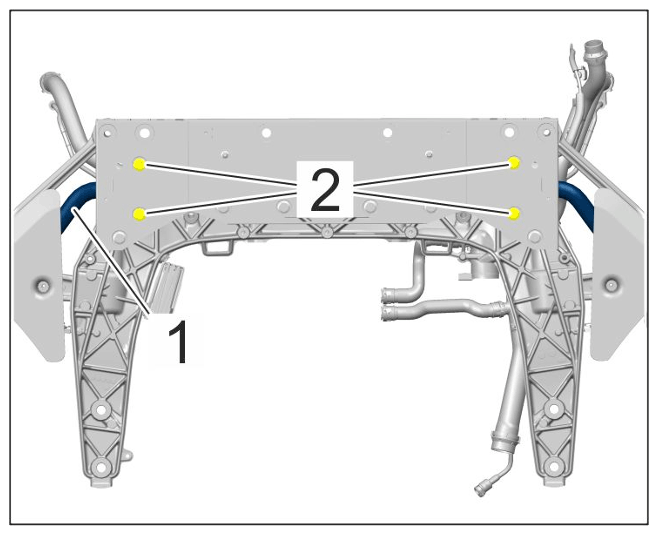

    G15519374Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Securing anti-roll bar

    1. 2.1 Remove screws -2-  .
