Preliminary Work

Information

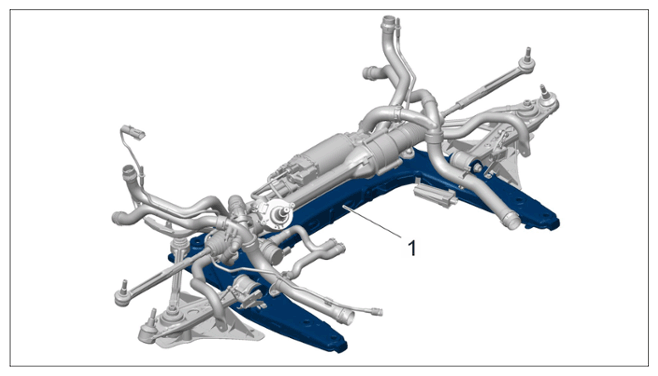

The front-axle cross member is removed together with the following components:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front-axle cross member

• Power-steering gear including wire harness
• Anti-roll bar
• trailing arm
• Additional coolant pump (only for all-wheel drive vehicles)
• Sections of the coolant lines and vent lines
• RDK control unit
• Angle sensor for headlight beam adjustment

1. Remove power-steering gear.

   489019 REMOVING AND INSTALLING POWER-STEERING GEAR
