Installing Anti-Roll Bar

1. Fit anti-roll bar -1-  on the front-axle cross member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

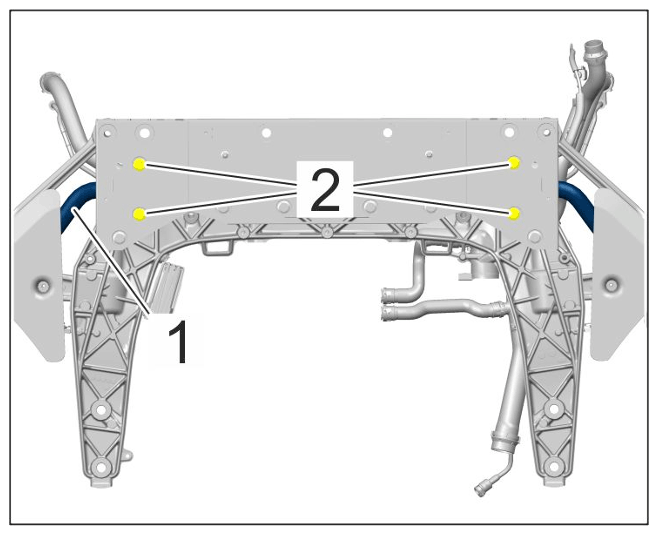

   Securing anti-roll bar

   1. 1.1 Tighten threaded joints -2-  . >Tightening torque 65 Nm (48 ftlb.)
2. Clip in holder for coolant lines -1-  at the anti-roll bar clamp -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

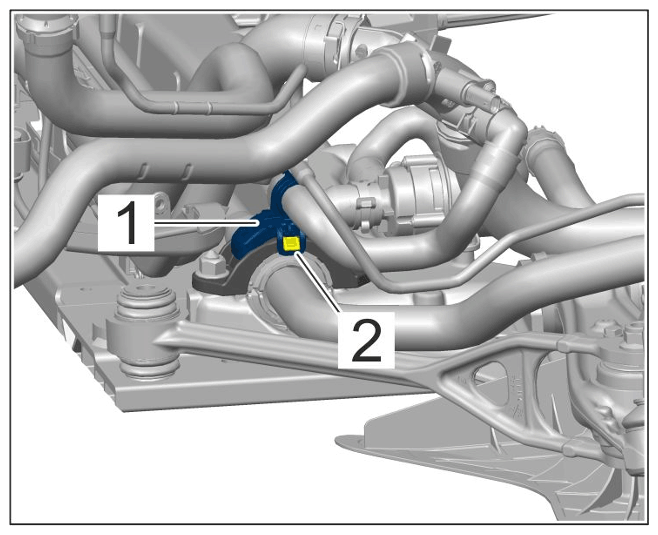

Coolant line holders
