Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

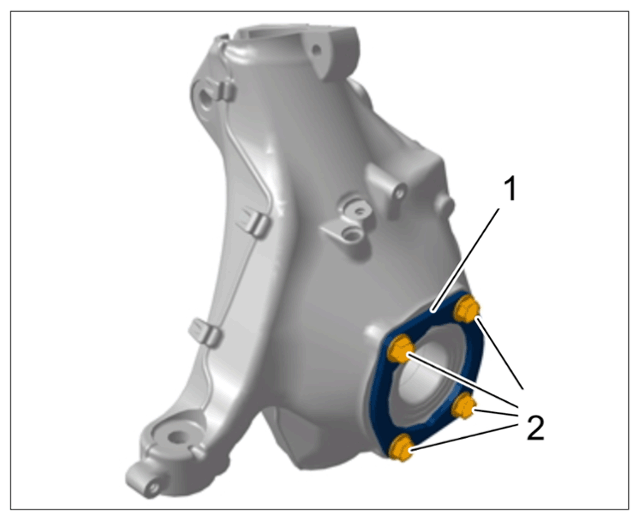

| Retainer plate for wheel bearing to wheel bearing housing | Item 2: Hexagon-head bolt, M8 x 35 | Tightening torque | 37 Nm (27 ftlb.) | ||
|
Wheel bearing cover |
|||||
| Wheel bearing housing | Temperature for installing wheel bearing (max. 100°C) | Temperature | 80°C | ||
