Removing Wheel Bearing Housing

Information

The wheel bearing housing is removed together with the spring strut.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

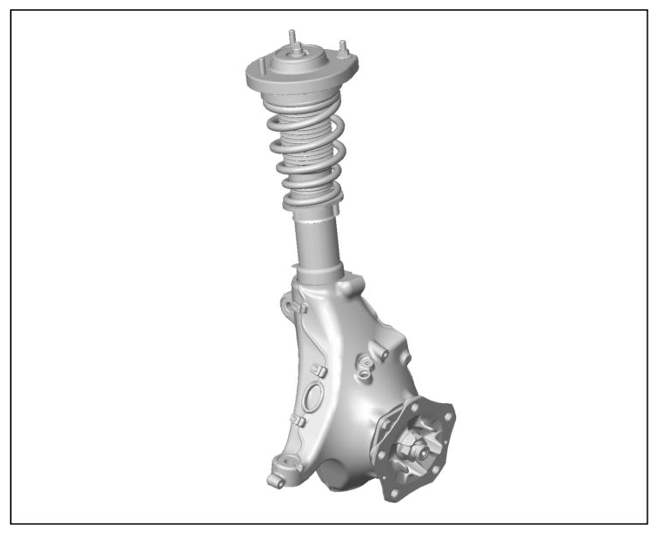

Wheel bearing housing with spring strut

1. Remove brake disc cover plate -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

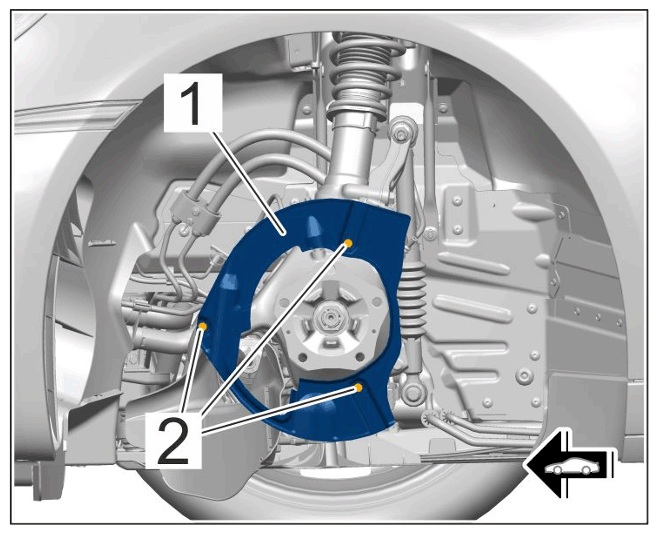

   Mounting for brake disc cover plate

   1. 1.1 Unscrew screws -2-  on brake disc cover plate.
   2. 1.2 Remove brake disc cover plate.

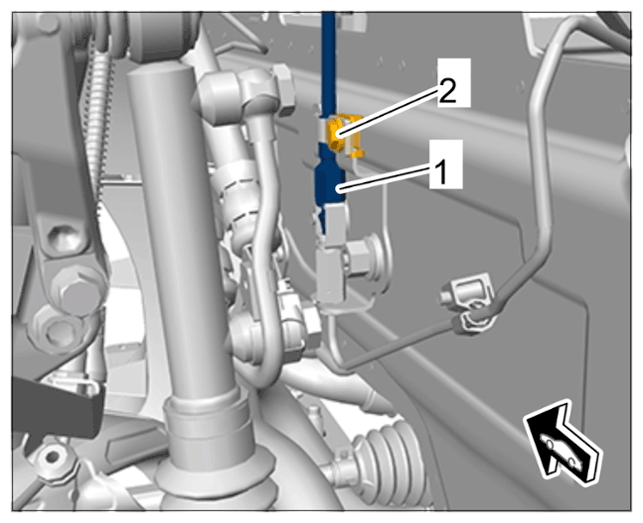

2. Only for vehicles with front axle lift system  : Open the separating coupling -1-  on the hydraulic line in the wheel housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Separating coupling for front axle lift system

   1. 2.1 Unscrew fastening screw -2-  from the line bracket.
   2. 2.2 Spread tabs of the separating coupling using suitable pliers and pull out upper line.
3. Only for vehicles with PDCC  : Remove PDCC adapter -1-  from the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for PDCC adapter

   1. 3.1 Unscrew and remove screws -2-  .
4. Remove angle sensor for headlight beam adjustment -1-  from the lower trailing arm.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

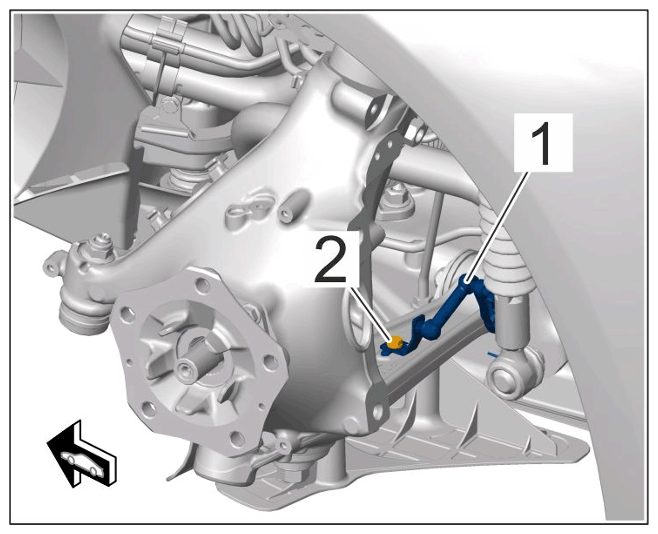

   Mounting for angle sensor for headlight beam adjustment on lower trailing arm

   1. 4.1 Unscrew screw -2-  .

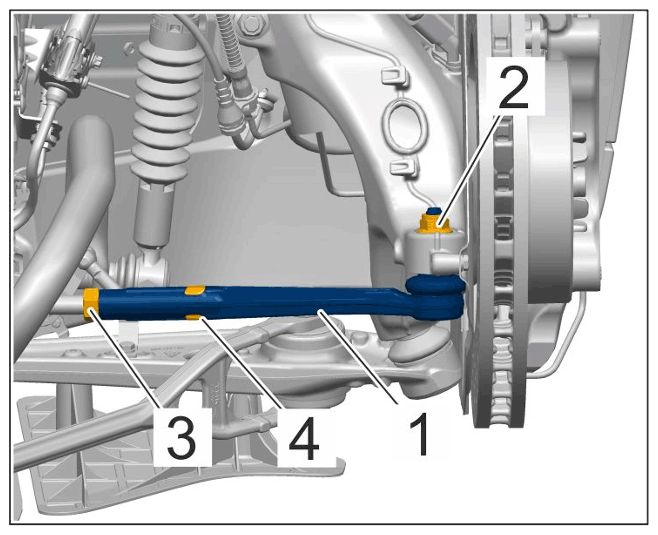

5. Remove tie-rod ball -1-  from the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for tie-rod ball

   1. 5.1 Unscrew nut -2-  and counter using >9546 - screwdriver  at the ball-joint pin.

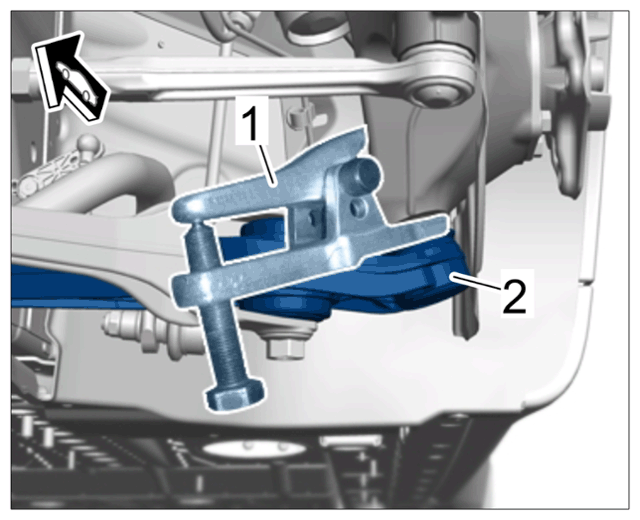

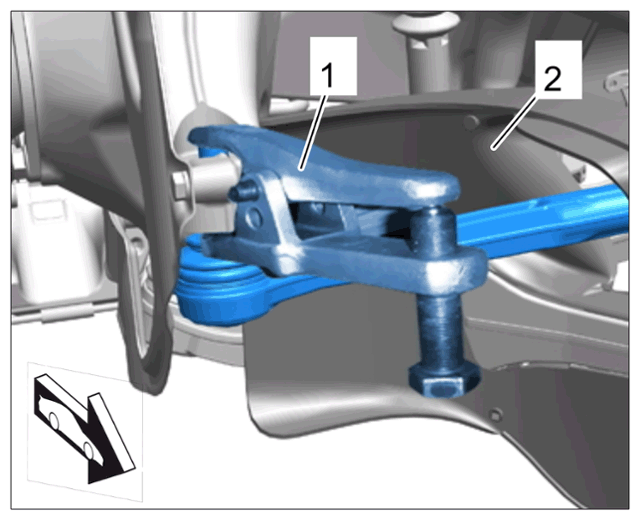

   2. 5.2 Press off the tie-rod ball using >9560 - press-out tool-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Press-out tool 9560 on tie-rod ball

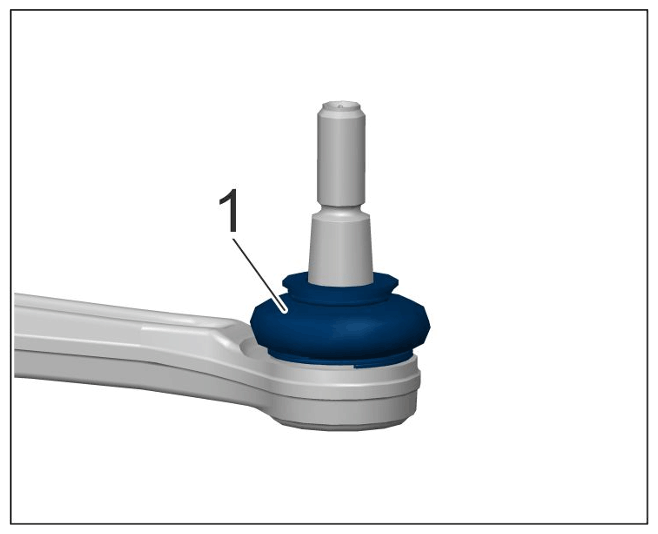

6. Check the boot -1-  of the tie-rod ball for signs of damage. If the boot is damaged, replace the tie-rod ball.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tie-rod ball boot

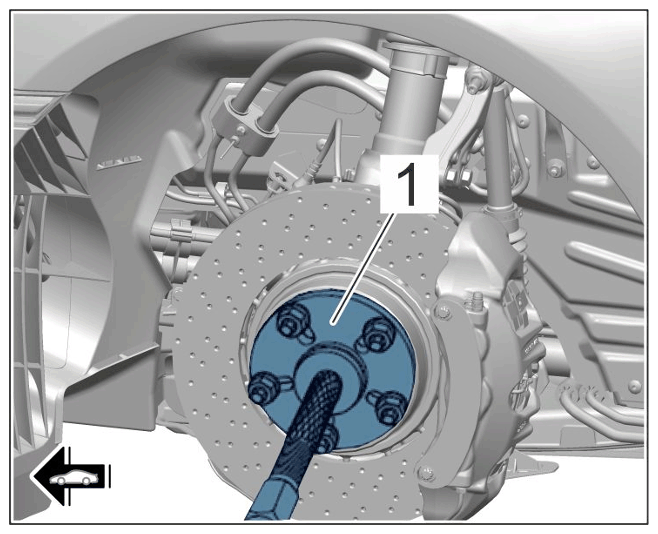

7. Only for all-wheel drive vehicles and for rear-wheel drive vehicles on which the wheel bearing/wheel hub will be replaced  : Carefully press the peg of the drive shaft/axle journal out of the wheel hub using >VAS 6926 - Puller set-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Puller set VAS 6926

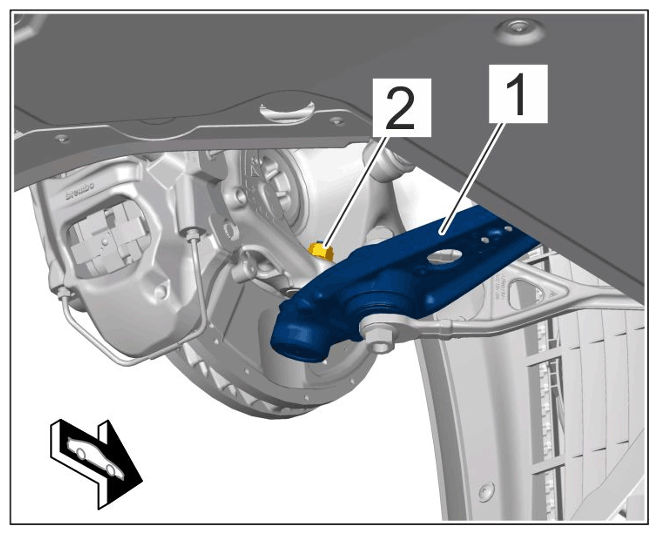

8. Remove lower trailing arm -1-  from the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for lower trailing arm on wheel bearing housing

   1. 8.1 Screw off nut -2-  .
   2. 8.2 Press off lower trailing arm using >9560 - press-out tool-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Press-out tool 9560 on lower trailing arm

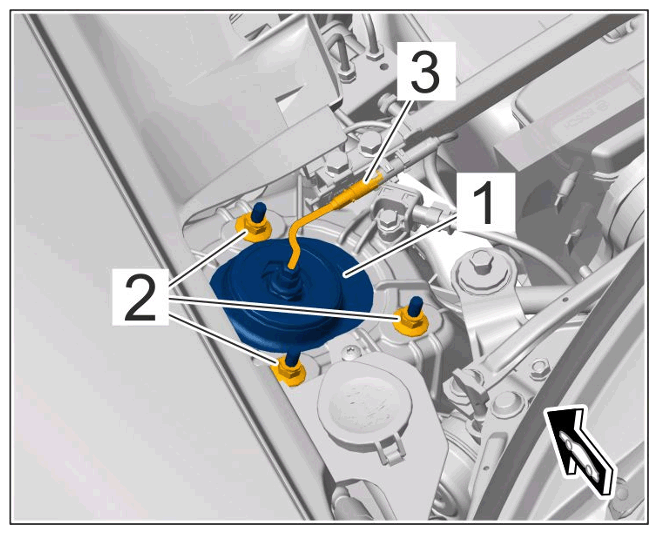

9. Remove spring strut -1-  from the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Attachment of spring strut to body

   1. 9.1 Mark installation position of the nuts -2-  .
   2. 9.2 Release and unplug electric plug connection -3-  .
   3. 9.3 Unscrew nuts -2-  , hold the spring strut securely at the coil spring and remove it.
10. Remove spring strut from wheel bearing housing.
    1. 10.1 For vehicles without PDCC  : Remove connecting link from wheel bearing housing.

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

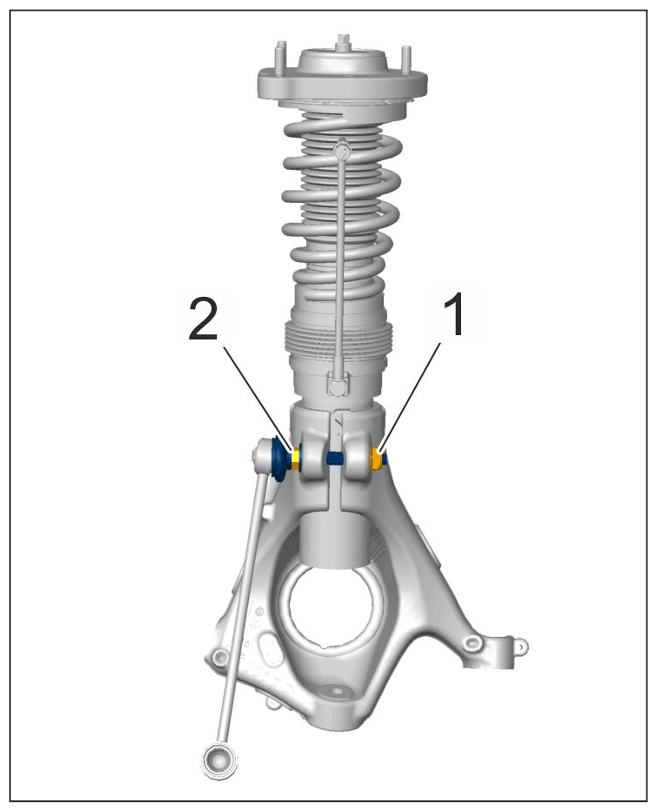

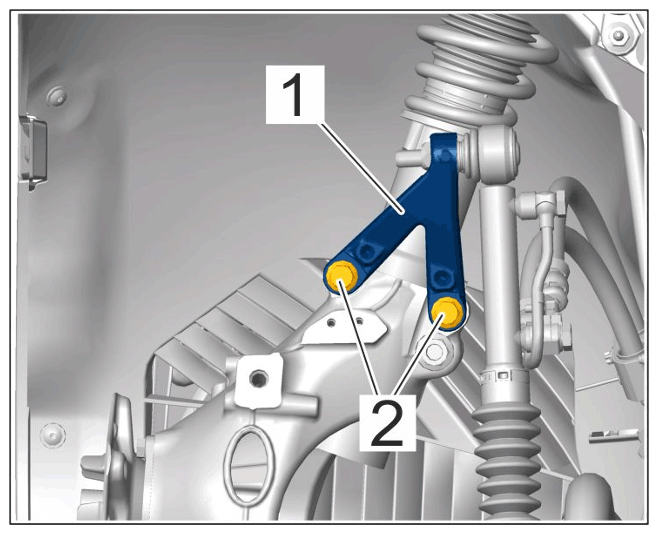

       Mounting for connecting link on wheel bearing housing

       1. 10.1.1 Screw off fastening nut -1-  .

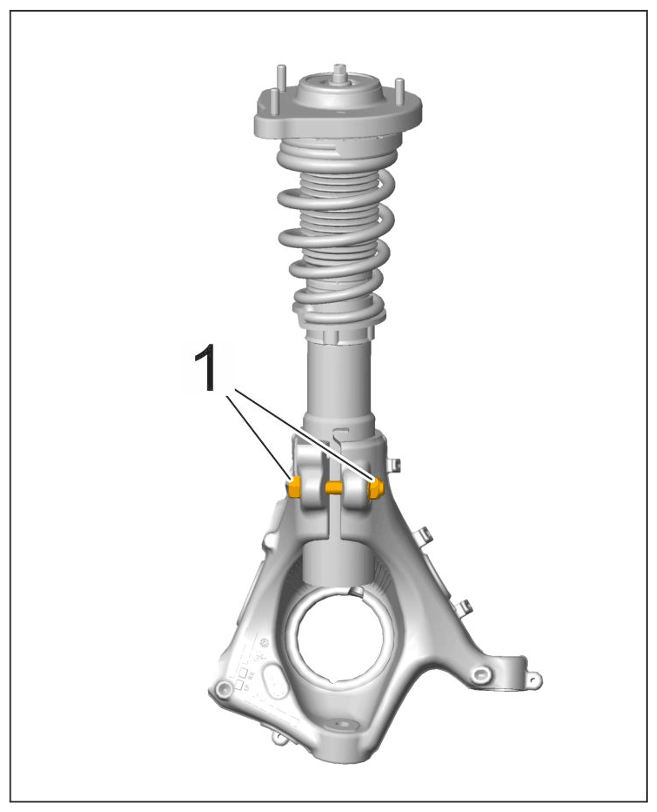

    2. 10.2 For vehicles with PDCC  : Remove threaded joint for damper pipe clamp -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Threaded joint for damper pipe clamp
