Removing Control Arm

Information

Control arm -1-  is removed together with brake disc air guide -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

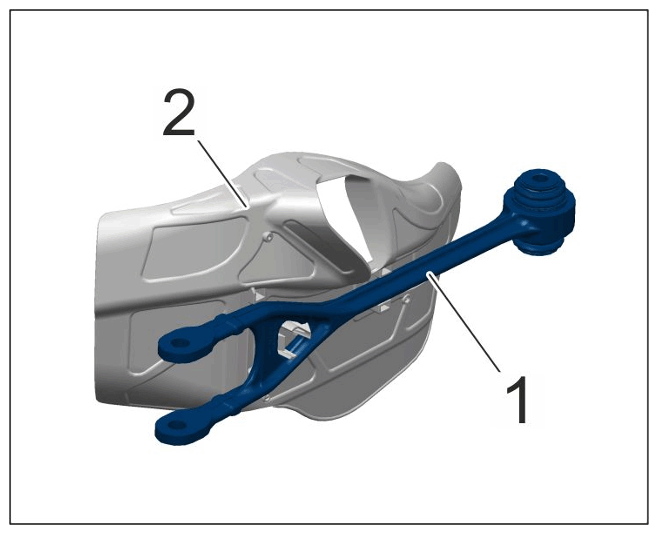

Control arm with brake disc air guide

1. Remove cover on lower trailing arm -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

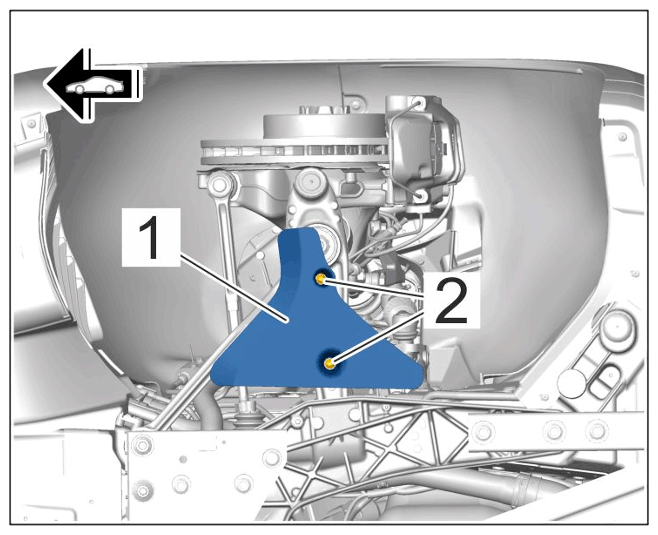

   Mounting for cover on lower trailing arm

   1. 1.1 Unscrew and remove screws -2-  .
2. Remove control arm -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

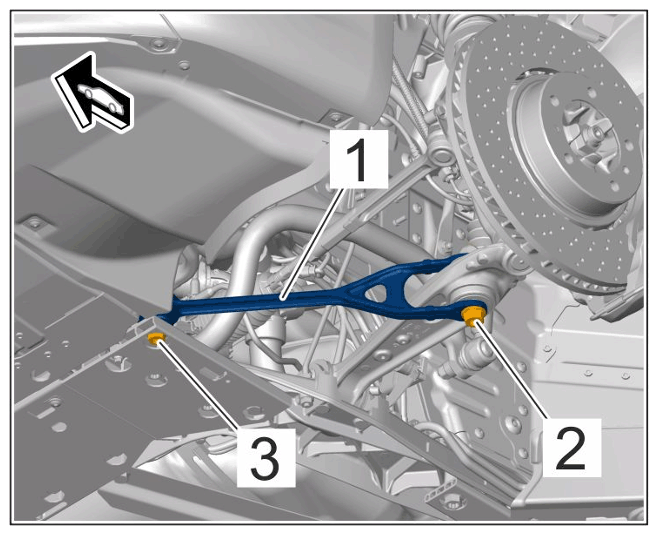

   Mounting for control arm

   1. 2.1 Loosen threaded connection -2-  .
   2. 2.2 Unscrew screw -3-  .
