Removing Lower Trailing Arm

Remove cover on lower trailing arm -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for cover on lower trailing arm
1. 1.1 Unscrew and remove screws -2- .

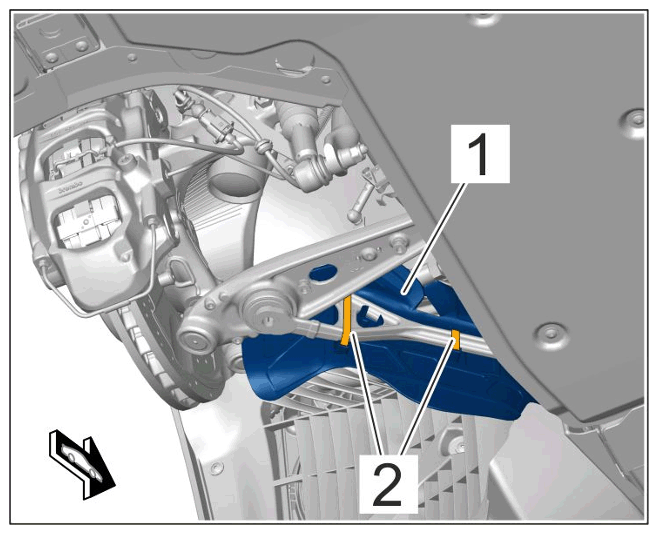

Loosen air guide for brake disc -1- and turn it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for brake disc air guide
1. 2.1 Cut tie-wrap -2- .

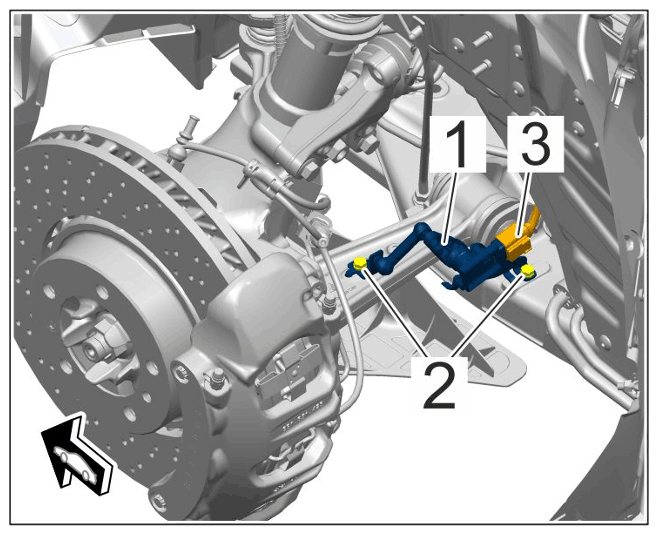

Remove angle sensor for headlight beam adjustment -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for angle sensor for headlight beam adjustment
1. 3.1 Unscrew and remove screws -2- .

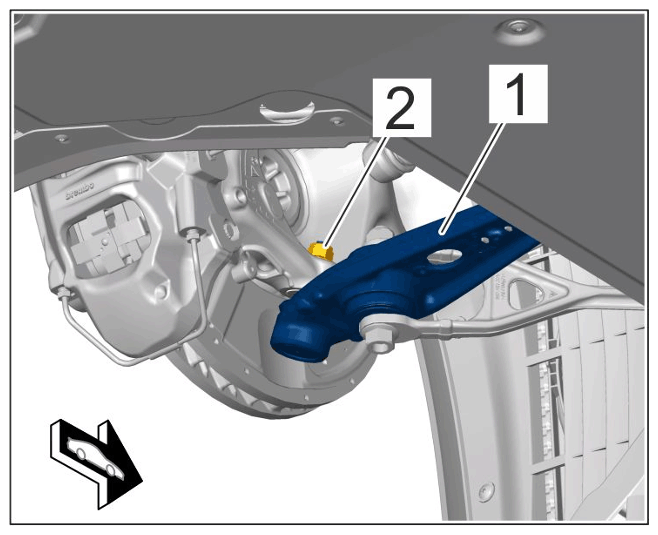

Remove lower trailing arm -1- from the wheel bearing housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lower trailing arm on wheel bearing housing
1. 4.1 Screw off nut -2- .

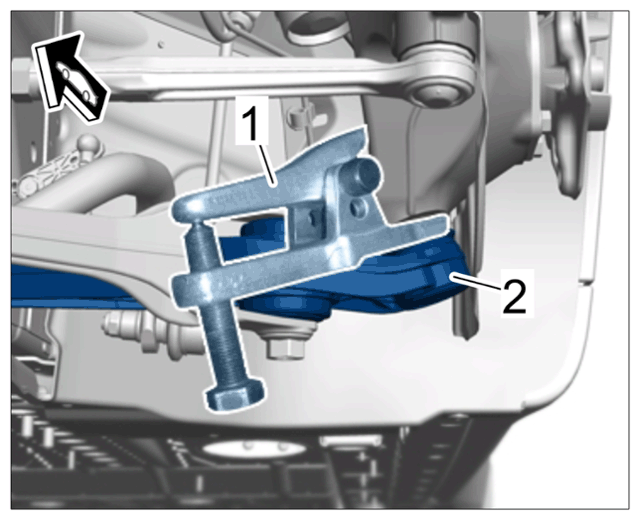

2. 4.2 Press off lower trailing arm using >9560 - press-out tool-1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press-out tool 9560 on lower trailing arm

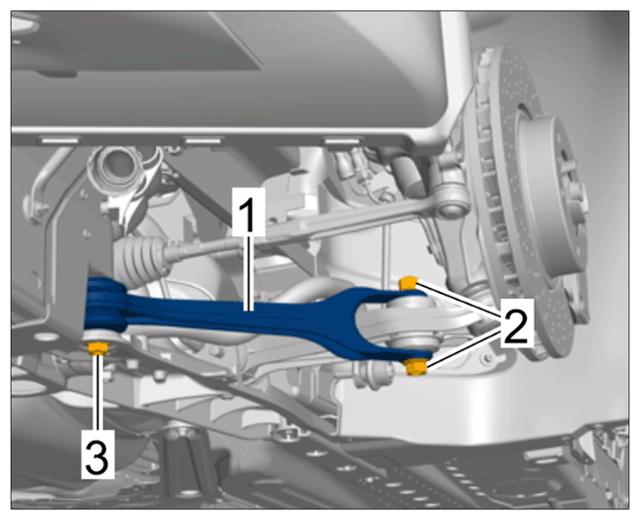

Remove control arm -1- from lower trailing arm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for control arm
1. 5.1 Loosen threaded joint -2- .

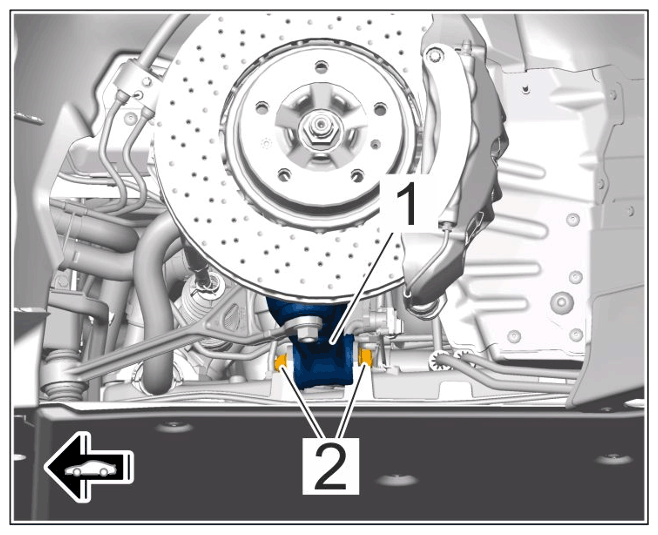

Remove lower trailing arm -1- from front-axle cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lower trailing arm on front-axle cross member
1. 6.1 Loosen threaded joint -2- .
