Removing And Installing Lower Control Arm

  1. Remove cover -1-  .
    G15519278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower front axle control arm cover

    1. 1.1 Remove screws -2-  and cover.
  2. Install cover -1-  .

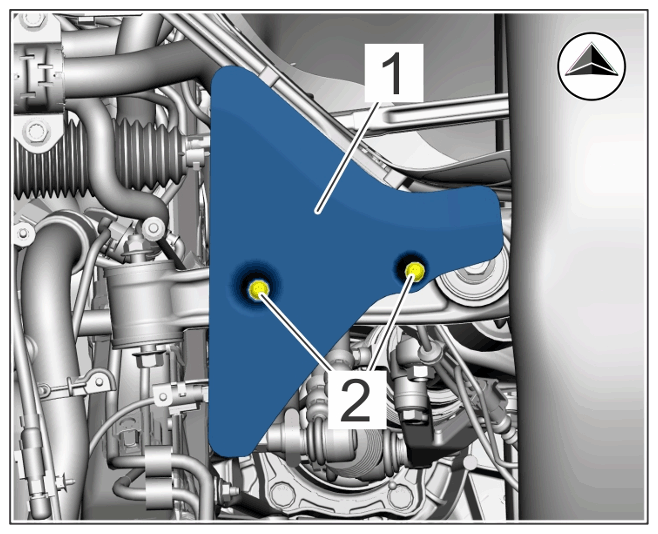

    G15519279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lower front axle control arm cover

    1. 2.1 Fit holder -2-  with screws -2-  , tighten screws.

      > Tightening torque 10 Nm (7.5 ftlb.)
