Removing Front-Axle Support

  1. Remove front-axle support -1-  .

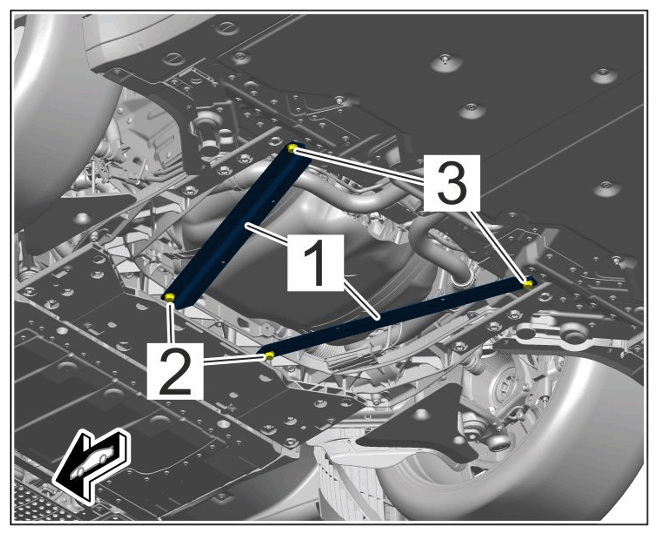

    G15519216Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for front-axle support

    1. 1.1 Unscrew and remove screws -2-  .
    2. 1.2 Unscrew and remove screws -3-  .
