Installing Front-Axle Support

  1. Install front-axle support -1-  .

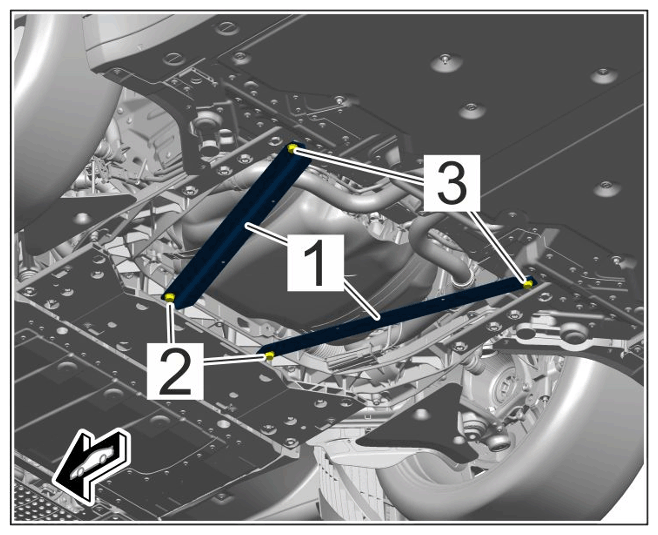

    G15519217Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for front-axle support

    1. 1.1 Tighten screws -2-  . >Tightening torque 55 Nm (41 ftlb.)
    2. 1.2 Tighten screws -3-  . >Tightening torque 55 Nm (41 ftlb.)
