WM, 536919 Removing And Installing Rear Wheel Housing Liner (Front Section): Notes

TECHNICAL VALUES SPECIFICATION

Technical values
Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

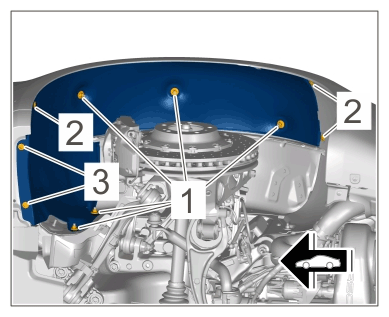

Rear wheel housing liner (front section) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening parts	Item 1	Tightening torque	2.5 (1.75 ft.lb) Nm	+ 10 %	- 15 %
Rear wheel housing liner (front section) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening parts	Item 2	Tightening torque	2 (1.5 ft.lb) Nm	+ 10 %	- 15 %
Rear wheel housing liner (front section) Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening parts	Item 3	Tightening torque	3.2 (2.1 ft.lb) Nm	+ 10 %	- 15 %
