WM, 51941917 Removing And Installing Rear Cover (Rear Section): Notes

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image

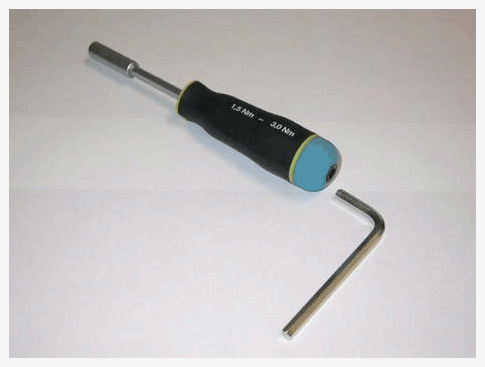

Torque screwdriver, 1.5-3 Nm (1-2 ft.lb)	Vehicle-specific workshop equipment	> VAS 6494	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

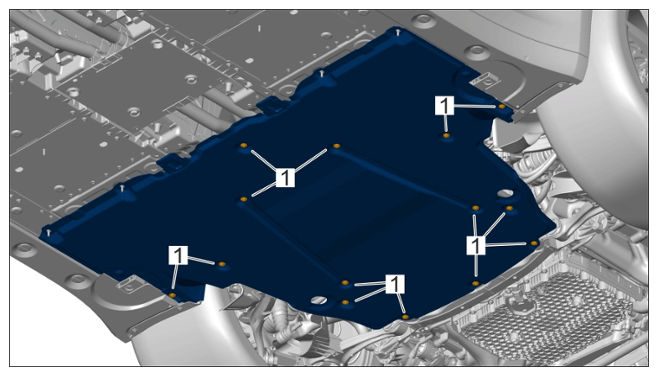

Rear cover	Item 1	Tightening torque	3 (2 ft.lb) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

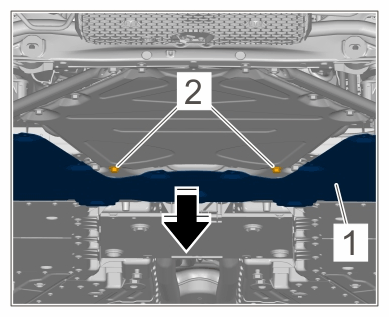

Rear cover	Item 2	Tightening torque	30 (22 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

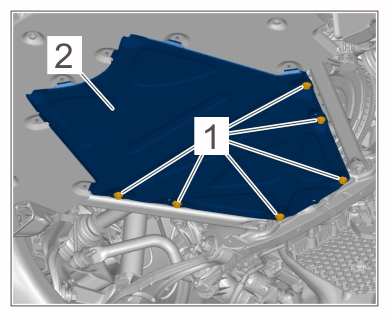

Rear cover	Item 1	Tightening torque	30 (22 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear cover

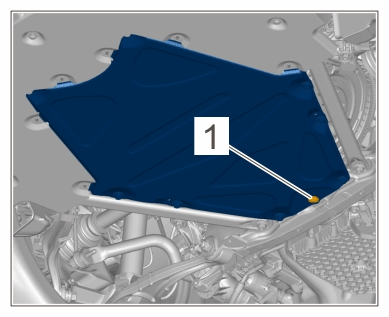

Rear cover	Item 1	Tightening torque	3 (2 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
