WM, 51921915 Removing And Installing Front Cover: Notes

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image

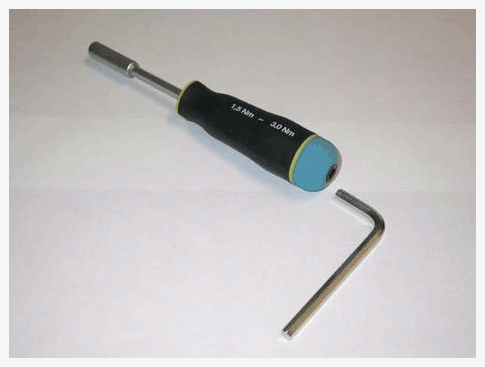

Torque screwdriver, 1.5-3 Nm (1-2 ft.lb)	Vehicle-specific workshop equipment	> VAS 6494	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

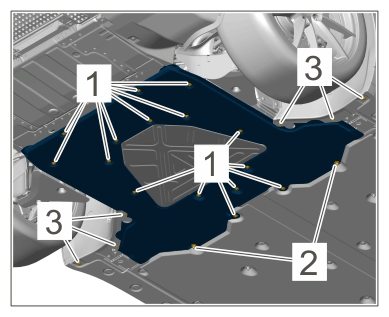

Front cover (Cabriolet)	Item 1	Tightening torque	3 (2 ft.lb) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws and nuts
Front cover (Cabriolet)	Item 2	Tightening torque	2.5 (1.75 ft.lb) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws and nuts

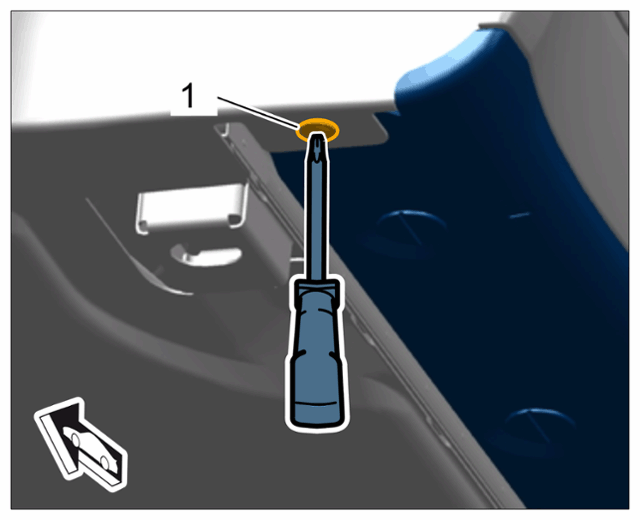

Door entry guard, front	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door entry guard
