WM, 510355 Replacing Roof (Panel): Notes

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image
spotweld cutter	Commercially available tool	> Nr.128-2	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

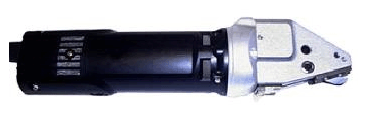

Electric panel shears	Vehicle-specific workshop equipment	> VAS 6843	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
electric cutter	Vehicle-specific workshop equipment	> V.A.G 1561B	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
scraper set	Vehicle-specific workshop equipment	> VAS 861 005	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Drilling position A		Length	45 mm
Drilling position B		Length	40 mm
Drilling position C		Length	40 mm
Drilling position A		Length	45 mm
Drilling position B		Length	40 mm
Drilling position C		Length	80 mm
Drilling position D		Length	35 mm
Drilling position E		Length	45 mm
Area A		Length	30 mm
Area A		Length	30 mm
