WM, 510319 Removing And Installing Roof: Notes

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image
electric cutter	Vehicle-specific workshop equipment	> V.A.G 1561B	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
electric cutter	Vehicle-specific workshop equipment	> V.A.G 1561A
Window removal set	Vehicle-specific workshop equipment	> VAS 861 001A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
scraper set	Vehicle-specific workshop equipment	> VAS 861 005	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

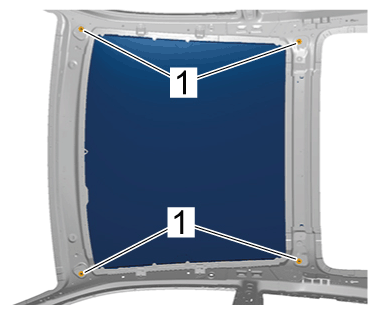

Roof	Item 1	Tightening torque	10 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
cutting knife	Z-bend cutting length	Length	25 mm
cutting knife	Z-bend cutting length	Length	25 mm
Cutting thread		Length	3.5 m
Cutting thread		Length	3.5 m
Area A		Length	50 mm
Area B		Length	30 mm

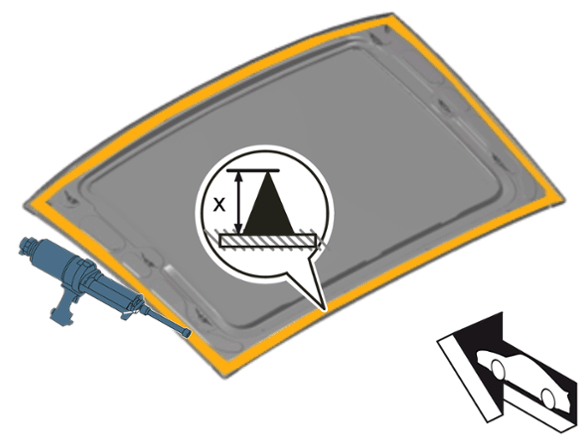

Applying adhesive	Spread out evenly	Application depth	15 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive bead (example)
