WM, 50561901 Removing And Installing Front Wheel Housing Liner (Front Section): Notes

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

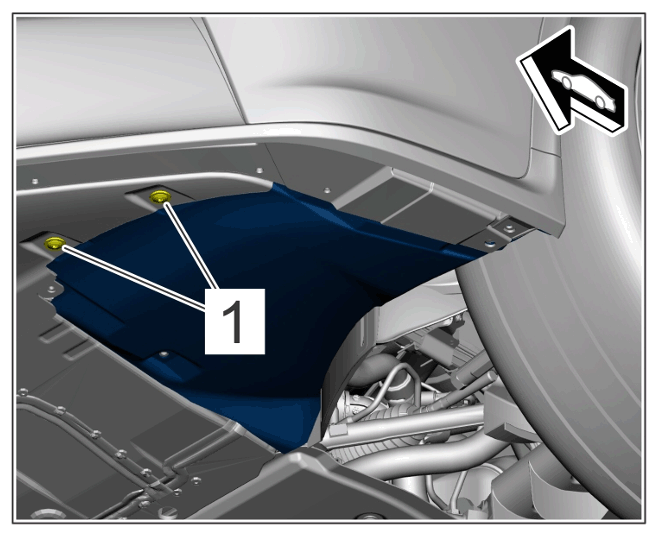

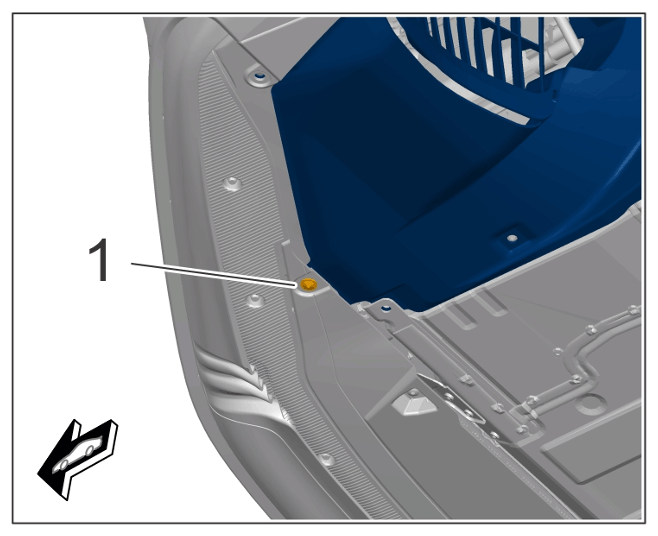

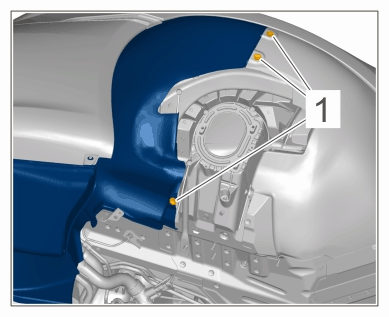

Front wheel housing liner (front section)	Item 1	Tightening torque	2 (1.5 ft.lb) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Front wheel housing liner (front section)	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws

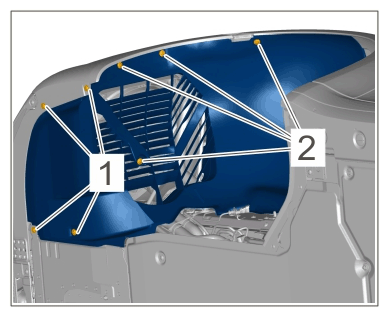

Front wheel housing liner (front section)	Item 2	Tightening torque	2 (1.5 ft.lb) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
Front wheel housing liner (front section)	Item 1	Tightening torque	3.2 (2.1 ft.lb) Nm	+ 10 %	- 15 %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw
Front screws (front section) GT3	Item 1	Tightening torque	3.2 (2.4 ft.lb) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
