WM, 505519 Removing And Installing Front Wing: Notes

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Nut securing strut to front wing	Item 1	Tightening torque	8 (6 ft.lb) Nm

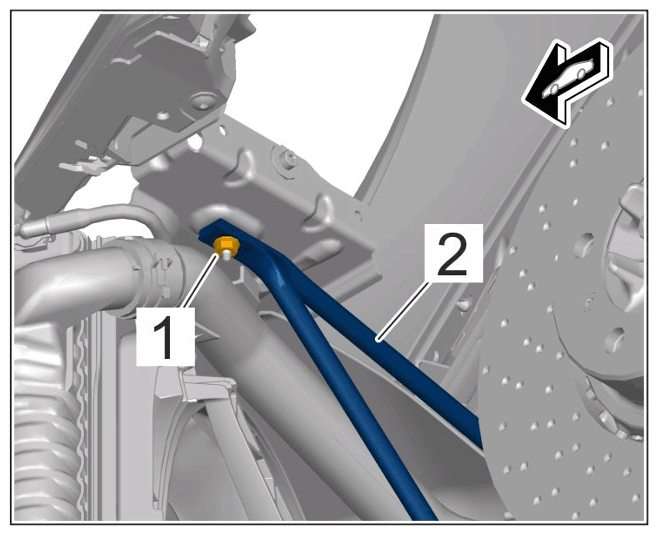

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner fastening nut
Screws on wing, top	Item 1	Tightening torque	8 (6 ft.lb) Nm

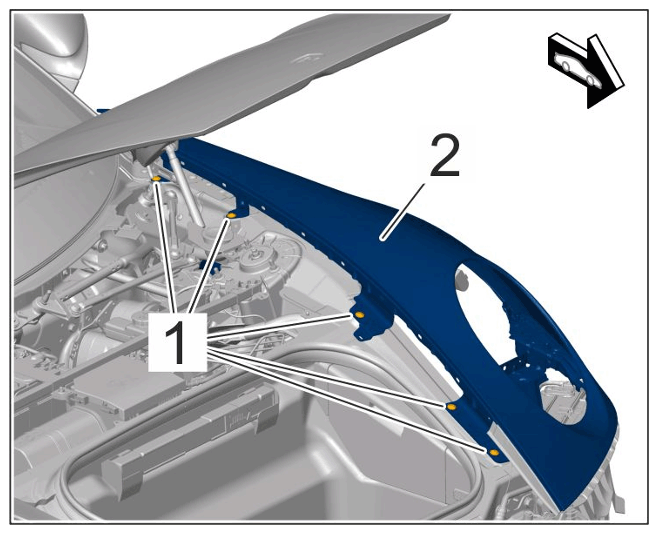

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screws, top
Screws on wing, rear	Item 1	Tightening torque	8 (6 ft.lb) Nm

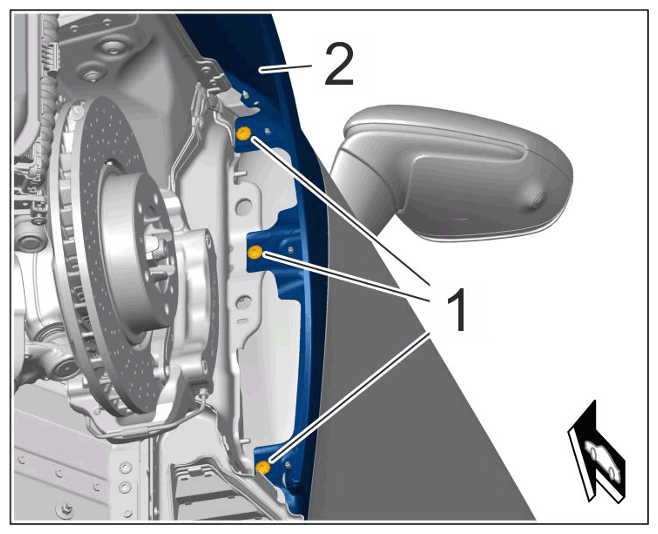

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing screws, rear
